イタリア製、VU Meter搭載のエピックなユーロラックミキサー近日入荷、予約受付開始！
Audio Gear Obsession SUMMINGFACILITY - 6チャンネル 2バス ステレオミキサー
https://www.boutiquepedalnyc.com/product/2135
3月〜4月入荷・発送予定！
SUMMINGFACILITY is an Eurorack high quality 6 channels, 2 buses stereo mixer. Every input channel has gain and level controls, 2 aux send and active pan control. Master and aux send buses can be independently muted on channels.
Input and output circuitry offers plug and play balanced and unbalanced connections capabilities.
All gain stages deliver up to 12 dB to ensure the best interaction with modular and non modular equipment.
Master section offers output level control, aux send outputs level control and 2 return channels with gain, active pan and mute from master bus.
Master bus offers 22 Vpp of headroom providing plenty of dynamic range for busy mixes.
The unit is pointed toward obtaining the lowest noise and best performance possible. Every input has a status led to indicate signal level after gain stage.
Master bus output is monitored by 2 Analog Vu-Meters (scale is tuned for 0 dB @ 15 Vpp, freely adjustable by the user).
MAIN FEATURES
SYSTEM
– 6 fully balanced input channels w/ gain, volume, panorama, 2 aux send, independent mute for master & aux buses
– 2 aux send outputs w/ ground cancelling circuitry
– 2 fully balanced aux return Input w/ gain, panorama & independent master bus muting
– Stereo master output w/ ground cancelling circuitry & 22 Vpp of headroom available
ENGINEERING
– Modern Op Amps
– 0.5% thin film resistors
– Wima & Panasonic caps
– 4 layer PCB (designed for best EMI/EMC)
– Reverse powering protection
PHYSICAL
– 38 HP
– Skiff friendly (32 mm behind the panel)
– Eurorack format
Manuals
#Eurorack #modularsynths #mixer #Audio gear Obsession #SummingFacility #ユーロラック #モジュラーシンセ #ミキサー #購入 #販売
![Instruō tanh[3] ウェーブシェイパー / リミッター 次回入荷分](https://www.boutiquepedalnyc.com/data/bpnyc/_/70726f647563742f32303139303931335f6362663864372e6a7067003136300000660066.jpg)
![Instruō [2]f デュアル フェーダー](https://www.boutiquepedalnyc.com/data/bpnyc/_/70726f647563742f32303139303931335f3964613366302e6a7067003136300000660066.jpg)

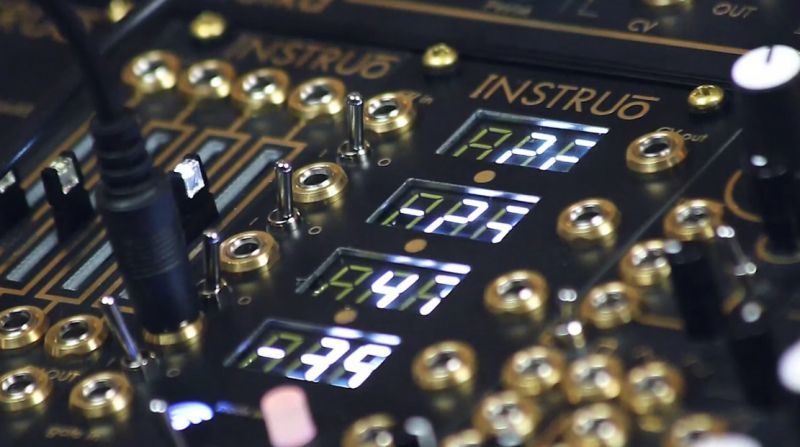

EURORACK MODULES HAND BUILT IN SCOTLAND
スコットランド発、ハンドメイド ユーロラックモジュール
- インストゥルオ -
Instruō /ˈin.stru.oː/, [ˈĩː.strʊ.oː]
noun. – instruction, teaching/educating
verb. – to build or construct, to provide with information, instruct, teach and inform
名詞 – 教授、教え/教育する
動詞 – 構築または組み立てる、情報の提供、指示する、教育、教え知らせる
取り扱い開始、お気軽にお問い合わせください！
