Instruō cèis ADSR 次回入荷分

cèis

ADSR

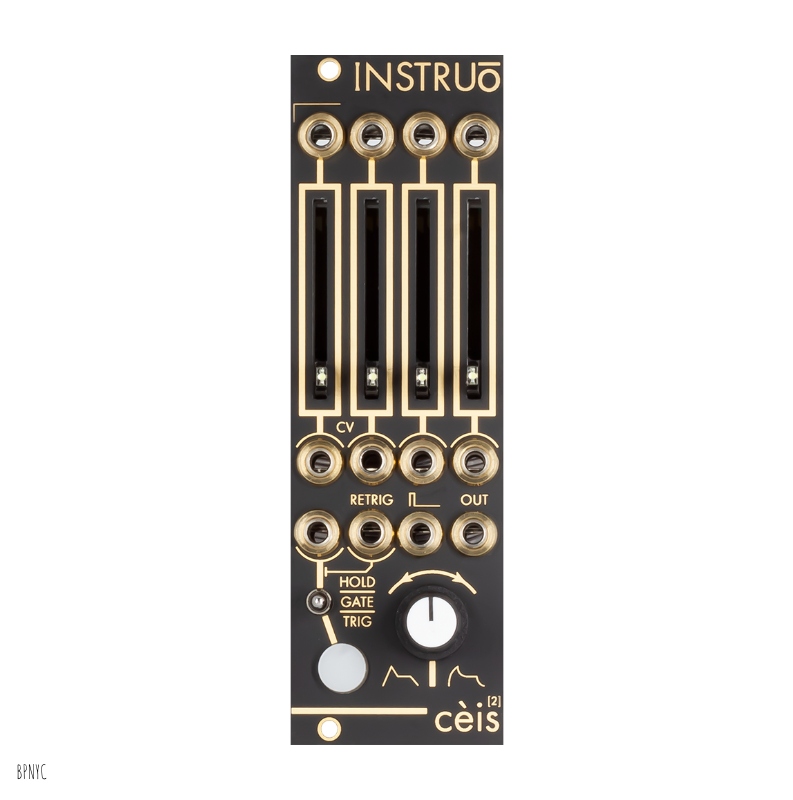

The Instruō cèis is a fully analogue voltage controlled ADSR envelope generator. The ADSR function generator is the model pioneered by the East-coast mindset and is extensively used in subtractive synthesis patches. The cèis gives the ability to externally control the attack, decay, sustain, and release stages of the envelope while also emitting trigger and gate signals for each segment, offering maximum versatility from a classic tool.

cèis | siːs | noun (envelope) a containing structure or layer, a curve joining the successive peaks of a modulated wave

Description
Size
8HP
Depth: 27mm

Power
+12V: 60mA
–12V: 30mA

Features
LED button for manual control and indication of output CV level
Fader and CV control over all 4 segments
Gate output per segment
LED faders for indicating segment stage when in use
Gate/Trig switch which forces completion of the Attack duration when triggered
Combined trigger output which fires when there is a change in segment
Variable envelope response shape from linear to exponential

Description
The cèis is a classic four stage envelope generator with variable control over attack duration, decay duration, sustain level and release duration.

Each envelope segment is controllable via smooth action 30mm travel faders. These faders sum with their own external CV inputs for dynamic variation of the envelope segment durations and level.

Each fader is illuminated when particular segments of the envelope are active. These lighting signals also drive 4 gate outputs that are high when the corresponding envelope segments are active.

When controlling the cèis with trigger signals, as opposed to longer gates, the Gate/Trig switch can be used to force the attack segment to complete its charge. This allows for use as a variable AR envelope.

In addition to the Gate/Trigger input jack, the cèis can be controlled manually by its illuminated button. This button lights to indicate the output voltage level.

The shape potentiometer varies the curvature of the temporal segments. Fully CCW and the envelope ramps are perfectly linear. CW will curve the A, D and R ramps to classic exponential shapes.
Instruō cèis ADSR 次回入荷分

販売価格: 32,242円 [通常販売価格: 32,900円]

重さ: 1lb

数量:
お問い合わせ

*** お問い合わせ&予約受付中 ***
