イタリア製、VU Meter搭載のエピックなユーロラックミキサー近日入荷、予約受付開始!

Audio Gear Obsession SUMMINGFACILITY - 6チャンネル 2バス ステレオミキサー
https://www.boutiquepedalnyc.com/product/2135
3月〜4月入荷・発送予定!
SUMMINGFACILITY is an Eurorack high quality 6 channels, 2 buses stereo mixer. Every input channel has gain and level controls, 2 aux send and active pan control. Master and aux send buses can be independently muted on channels.
Input and output circuitry offers plug and play balanced and unbalanced connections capabilities.
All gain stages deliver up to 12 dB to ensure the best interaction with modular and non modular equipment.
Master section offers output level control, aux send outputs level control and 2 return channels with gain, active pan and mute from master bus.
Master bus offers 22 Vpp of headroom providing plenty of dynamic range for busy mixes.
The unit is pointed toward obtaining the lowest noise and best performance possible. Every input has a status led to indicate signal level after gain stage.
Master bus output is monitored by 2 Analog Vu-Meters (scale is tuned for 0 dB @ 15 Vpp, freely adjustable by the user).
MAIN FEATURES
SYSTEM
– 6 fully balanced input channels w/ gain, volume, panorama, 2 aux send, independent mute for master & aux buses
– 2 aux send outputs w/ ground cancelling circuitry
– 2 fully balanced aux return Input w/ gain, panorama & independent master bus muting
– Stereo master output w/ ground cancelling circuitry & 22 Vpp of headroom available
ENGINEERING
– Modern Op Amps
– 0.5% thin film resistors
– Wima & Panasonic caps
– 4 layer PCB (designed for best EMI/EMC)
– Reverse powering protection
PHYSICAL
– 38 HP
– Skiff friendly (32 mm behind the panel)
– Eurorack format
Manuals
#Eurorack #modularsynths #mixer #Audio gear Obsession #SummingFacility #ユーロラック #モジュラーシンセ #ミキサー #購入 #販売
当初Winter Modularは個人的なプロジェクトとして生まれ、個人的なニーズをカバーするためのユーロラックシーケンサーを構築しましたが、すぐに別のものとなりました。Befaco/Miguel Eedl/Eurorack Barcelonaのコミュニティの助けを借りて、より複雑で同時に直感的なものとなりました。これからもWInter Modularはユーロラックの世界で強力で楽しく使えるツールを構築する道を追求します!

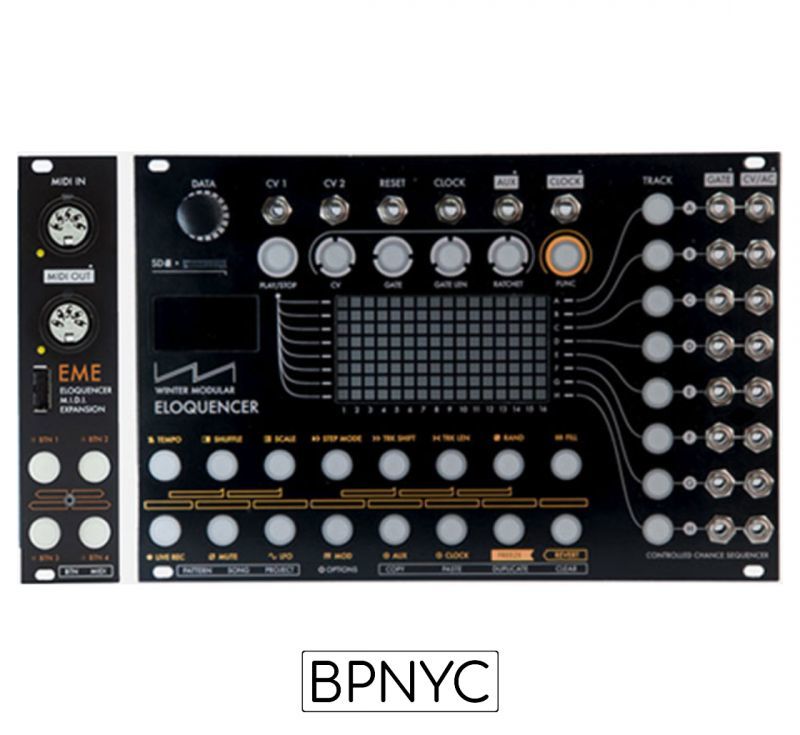

ELOQUENCER
Eloquencerは、パフォーマンスと作曲の両方のツールとして使用できる強力で多用途のユーロラックシーケンサーです。直感的で使いやすく、すばやく編集できるように設計されています。「制御されたチャンス」の概念に基づいて構築されています。これはランダム性がいつどこで発生し、このランダム性がシーケンスにどの程度影響するかを決定できることを意味します。 16ステップの配置で8トラックのCVとゲートを備えていますが、より多くの小節数またはチェーンパターンを定義して、それぞれ256ステップの複数のソングパーツを構築できます。

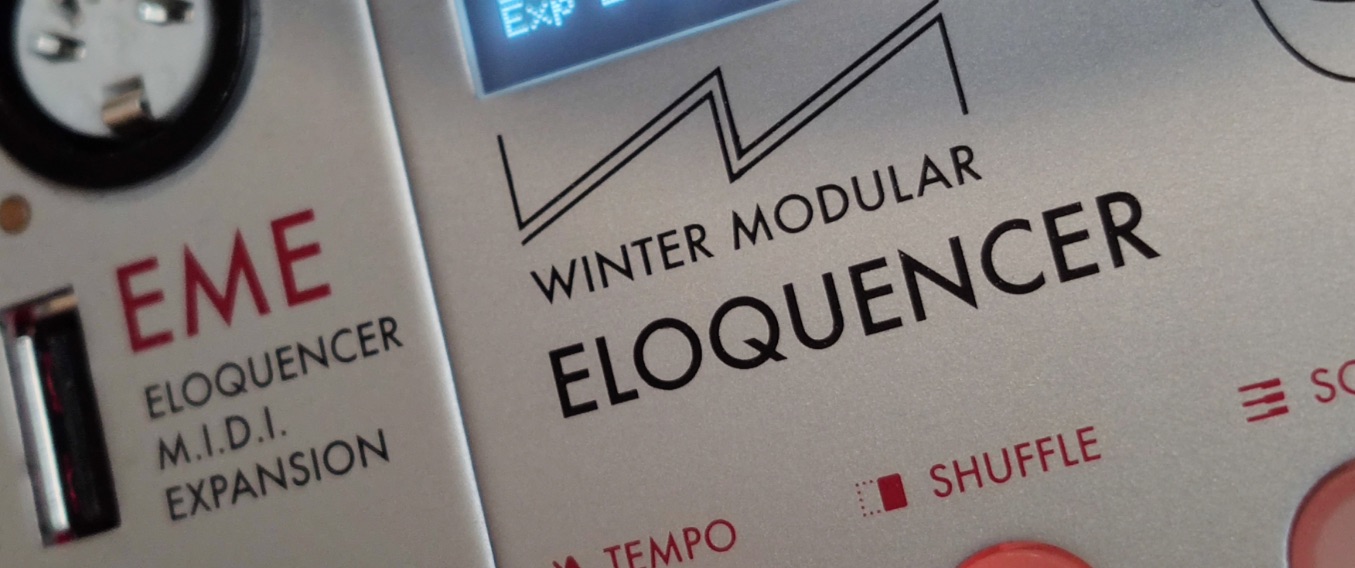

EME
EME(Eloquencer MIDI Expansion)は、Eloquencerの完璧なコンパニオンです。MIDIデバイスと同期する機能を追加し、MIDIインターフェースでEloquencerのほとんどのパラメーターを制御し、EloquencerトラックからMIDI音声を生成し、MIDI信号をユーロラックの世界に変換します。
