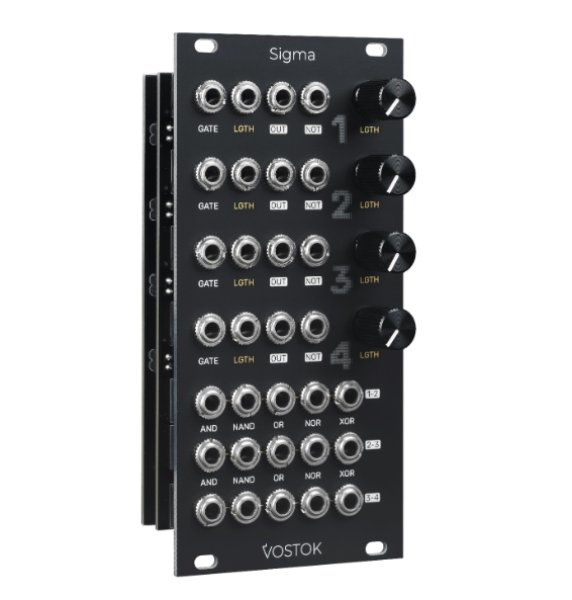

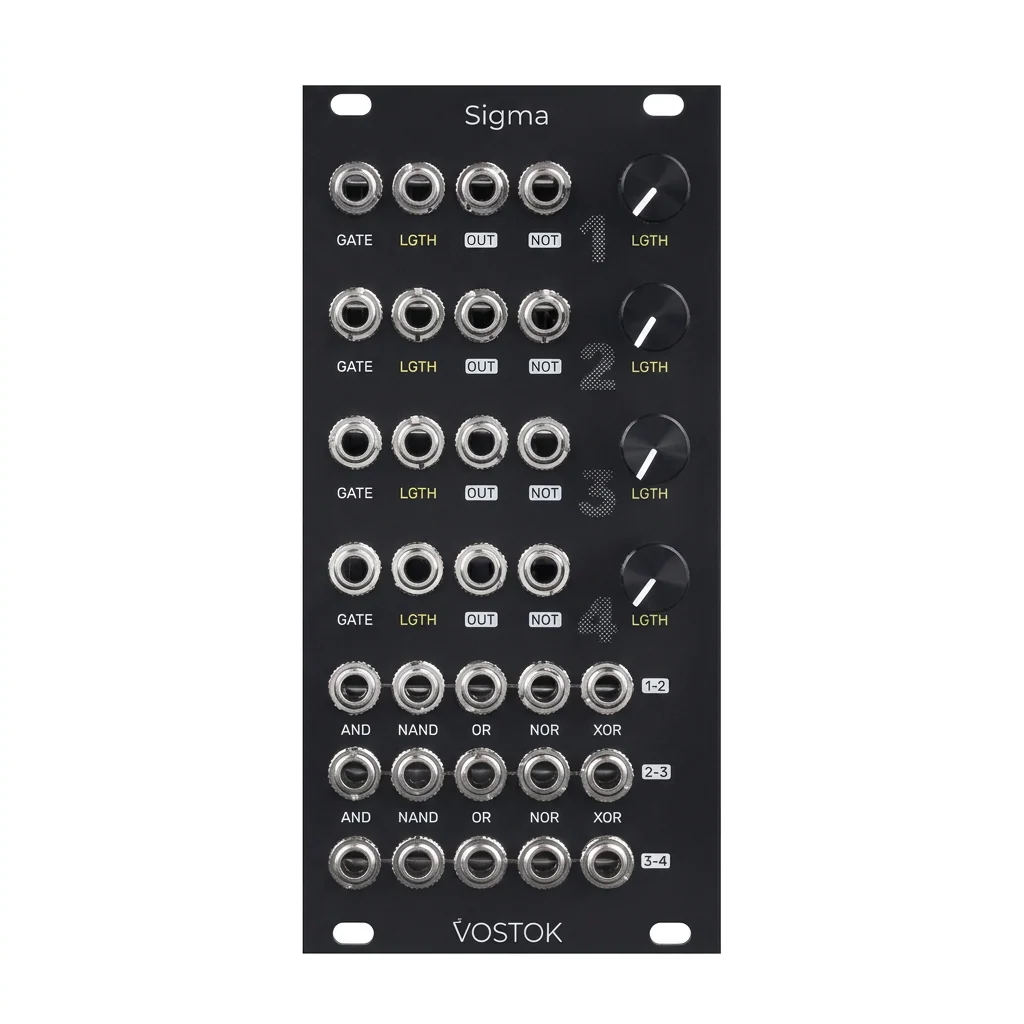

Vostok Instruments SIGMA - Hybrid Rhythm Computer
Vostok Instruments SIGMA - Hybrid Rhythm Computer
商品詳細
バルセロナに拠点を置く音響機器メーカー
Sigma is a multi-channel gate processor with a strong focus on rhythm and time-event manipulation.
The module generates up to 23 simultaneous gate signals directly related to the four gate inputs, allowing you to fire an entire array of synced events in your patch by just moving pots and connecting cables.
The core of the module is composed of four identical CV-controlled gate-length processors that create exact copies of your gate signals with adjustable length.
The Logic section creates new events from each length-processed pair using analog Boolean circuits.
Pair Sigma with a trigger sequencer or clock generator, and a bunch of drum modules or voices to get a vast amount of new rhythmical patterns on the fly.
Features
Four CV-controlled Gate Length Processors.
Fully adjustable Length from 1ms to infinite.
Dedicated NOT Output per channel.
Dedicated Logic section adding 15 extra gate outputs with AND, NAND, OR, NOR and XOR operations for each pair of channels.
Hybrid design combining a digital length processor with fully analog logic circuits to ensure minimal latency.
Specs
Size: 12HP
Current draw: +/-12V: 70mA, +5V: 0mA
Depth: 30mm (including power cable)
Input Impedance: 100kΩ
Output Impedance: 1kΩ
Length CV Input Range: 5Vp-p
Output Voltage: 5Vp-p
Sigma is a multi-channel gate processor with a strong focus on rhythm and time-event manipulation.
The module generates up to 23 simultaneous gate signals directly related to the four gate inputs, allowing you to fire an entire array of synced events in your patch by just moving pots and connecting cables.
The core of the module is composed of four identical CV-controlled gate-length processors that create exact copies of your gate signals with adjustable length.
The Logic section creates new events from each length-processed pair using analog Boolean circuits.
Pair Sigma with a trigger sequencer or clock generator, and a bunch of drum modules or voices to get a vast amount of new rhythmical patterns on the fly.
Features
Four CV-controlled Gate Length Processors.
Fully adjustable Length from 1ms to infinite.
Dedicated NOT Output per channel.
Dedicated Logic section adding 15 extra gate outputs with AND, NAND, OR, NOR and XOR operations for each pair of channels.
Hybrid design combining a digital length processor with fully analog logic circuits to ensure minimal latency.
Specs
Size: 12HP
Current draw: +/-12V: 70mA, +5V: 0mA
Depth: 30mm (including power cable)
Input Impedance: 100kΩ
Output Impedance: 1kΩ
Length CV Input Range: 5Vp-p
Output Voltage: 5Vp-p
