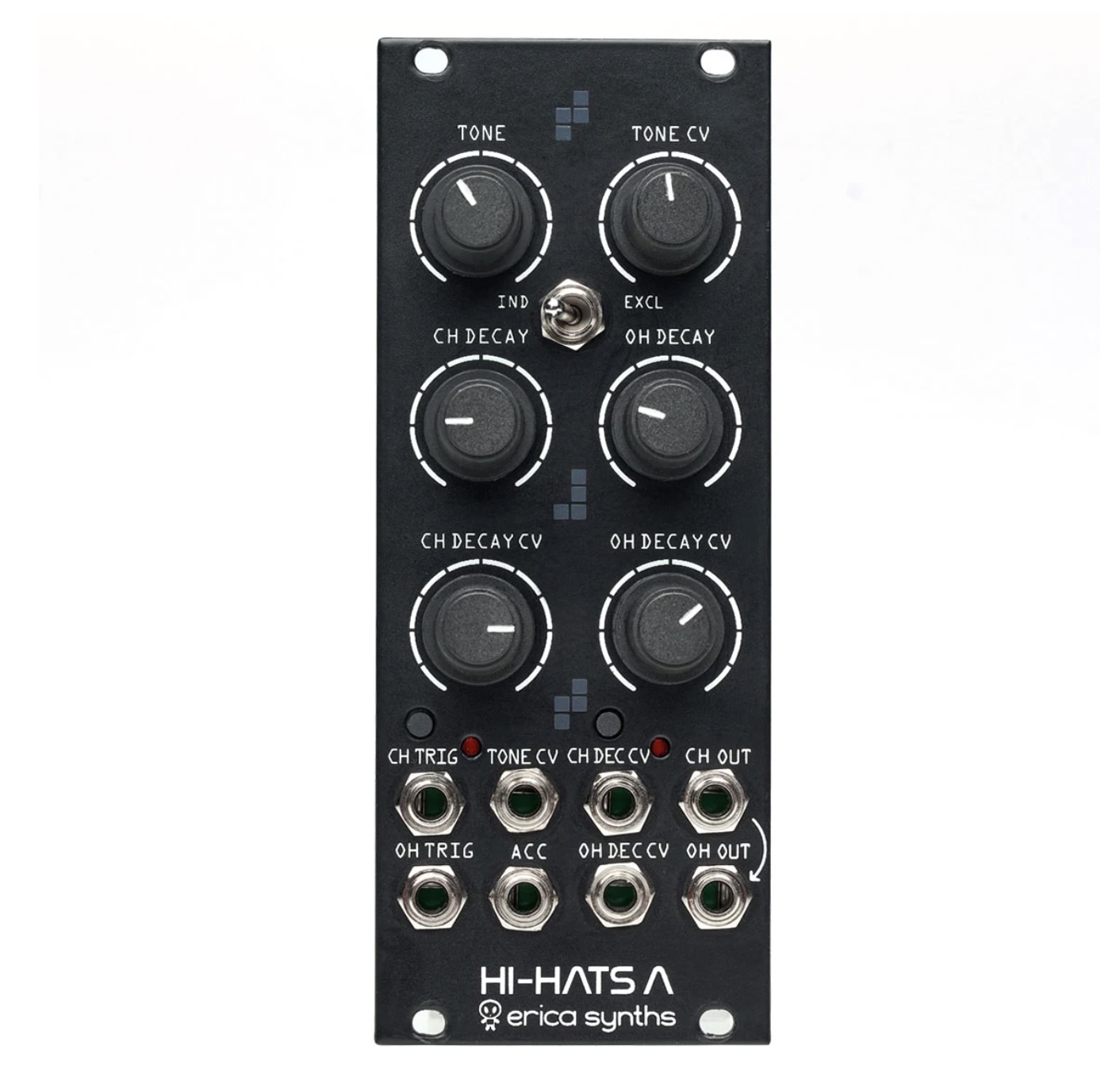

Erica Synths full analogue hi-hats module with accent and manual and CV control over Tone and Decay (individual for each hi-hat) allows you to create lot of variations in hi-hats track. Closed hat and Open hat can be played independently or exclusively (Open hat will not trigger, if Closed hat is triggered). The module is developed in collaboration with French company e-licktronic.

USER MANUAL

Decay range Closed hat10ms - 200ms
Decay range Open hat110ms - 800ms
Audio output level-5…+5V
CV level (full span)-5V - +5V
Accent CV level5V
Tigger level5V
Trigger time1ms
Power consumption33mA @ +12V, 26mA @ -12V
Module width10HP
Module depth50mm
