Filtered BusBoard is a low profile bus board with extra filtered output headers.
Description

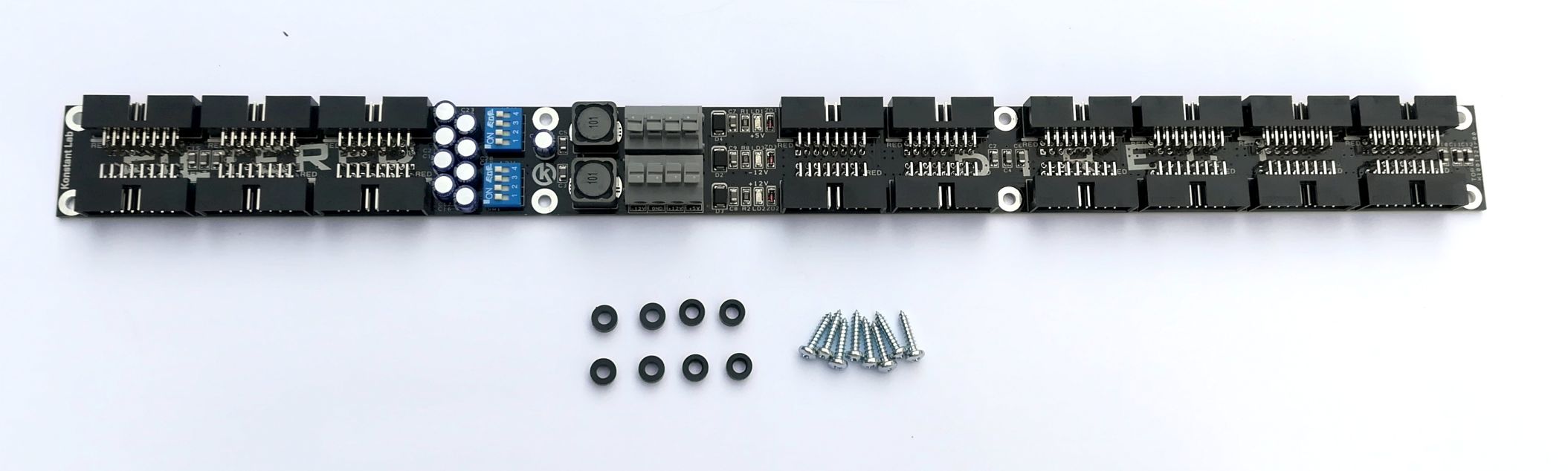

Filtered BusBoard is a low profile bus board with extra filtered output headers. This is an ideal bus board for all Konstant Lab power supplies but also works with other eurorack power supplies as well. Bus board contains 18 output headers. 12 direct headers with decoupling capacitors and 6 filtered headers with unique filtering circuits. Filtered headers are specially dedicated to feed analog modules that are sensitive/susceptible to power quality. Decoupling capacitors and LC filters reject noise caused by PSU and digital modules by 70%. Two 4 ways DIP switches can tune filtration capacity when some PSU has starting problems with big capacity on output – especially handy if you have a lot of digital modules present in your system. Each power rail is protected against overvoltage for your modules and systems safety. 90% of the bus board area has only 11mm in height with inserted connectors. This feature makes Filtered bus board an ideal power distribution solution for skiff cases where depth is a concern.
Additional information
| Weight | 162 g |
|---|
| Dimensions | 39 × 3 cm |
|---|
| HEIGHT | 11mm with inserted connectors |
|---|
| INPUT TERMINALS | Two shock resistant “Push to Connect” input terminals |
|---|
| OTHER | Easy daisychain connection for more bus boards
LC filters with tunable capacity
Additional SMD filter capacitors on direct and filtered side
Output overvoltage protection – keep your modules safe
LEDs indicate present and drop of output voltage
Wide PCB tracks for low impedance
Continous ground plane on one PCB side |
|---|
