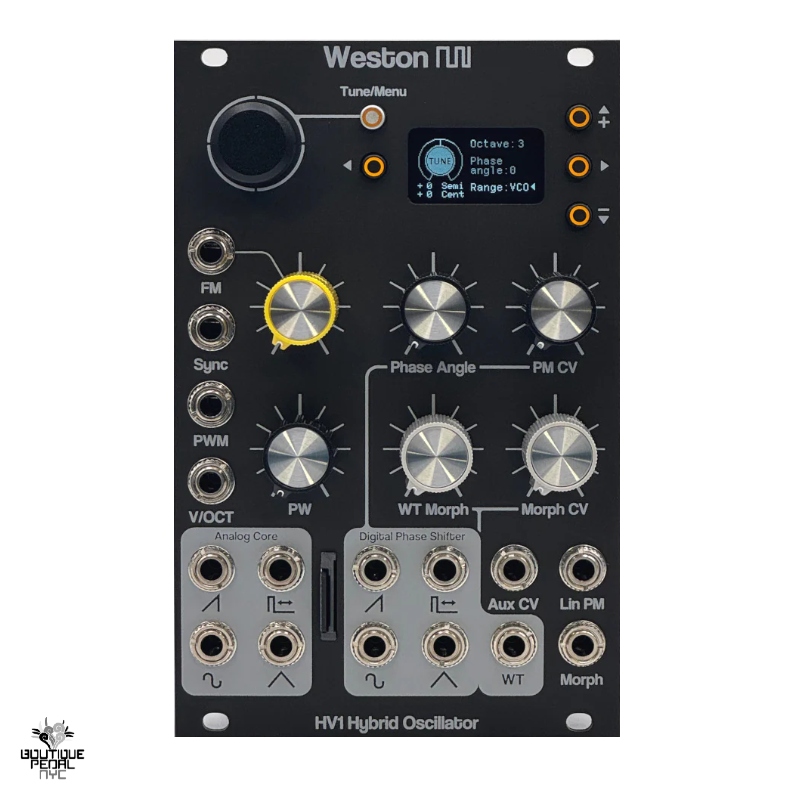

Weston Precision Audio HV1 Hybrid Oscillator

HV1 is an oscillator that brings the best of both the analog and digital worlds: At the core is a super stable, great-tracking, analog triangle core VCO. The triangle is fed into a digital phase shifter, which outputs a phase-shifted triangle and morphed wavetable waveform. The phase-shifted triangle is also transformed into a complementary set of sawtooth, pulse, and sine waveforms using analog circuitry. The digital waveforms are both 16-bit / 150kHz resolution, with available anti-aliasing, making them right at home with the analog waveforms.

Features:
+ Detune ability to make HV1 act like 2 separate, parallel oscillators
+ True linear Phase Modulation & Through-Zero FM
+ 16-way morphing wavetable output with ability to load WaveEdit format and       Serum files from SD card
+ Auxiliary CV assignable to wavefolding and bitcrushing effects
+ Built-In Tuner Function
+ Great tracking and stability with 8 octave switch
