WORNG Electronics ACRONYM　次回入荷分

ACRONYM stands for Analogue CoRe Oscillator New tYpe: Morphing. It combines a stable, great tracking analogue triangle core VCO with unique waveshaping, voltage controlled wavemorphing, through-zero phase modulation, and two suboscillators to create a powerhouse VCO that excels creating unique analogue timbres as well as more traditional waves.

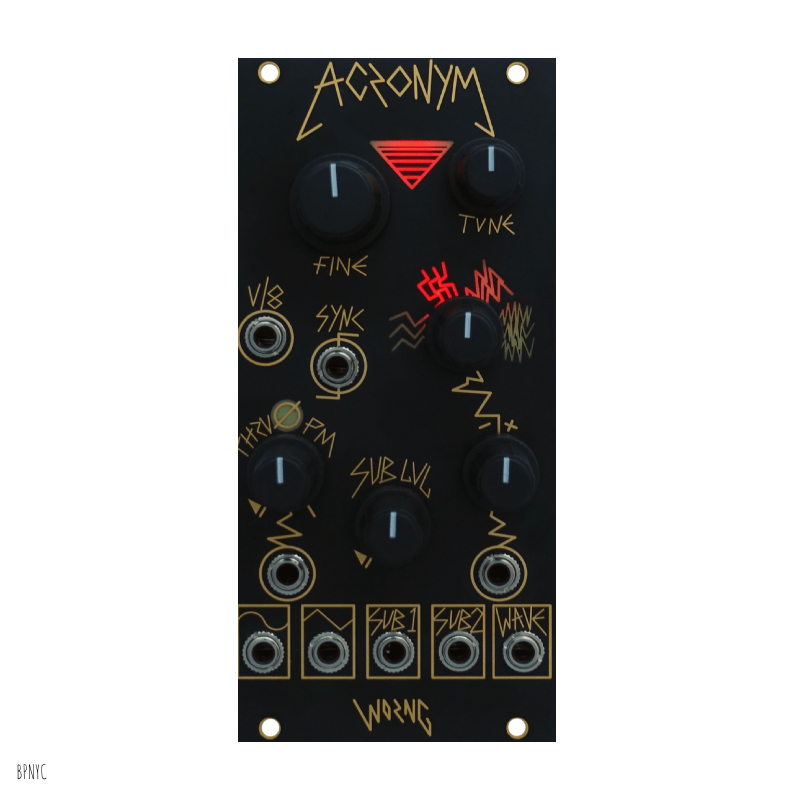

ACRONYM is designed with extreme attention to user ergonomics with all controls laid out to be tweaked by human hands. A large Fine Tune control means you won't have any trouble dialing in exact frequencies, perfect for precise phase modulation ratios. Five audio outputs (Sine, Triangle, -1 sub, -2 sub, wavemorph) give you plenty of options for self-patching or more complex patches. Variable wave morphing with separate control of subs in the Wave output mean you don't need an extra mixer. Hard sync allows for more tonal options when modulating the phase of the VCO core. The volt per octave CV input (marked V/8) allows precise tracking of over 8 octaves.

The real strength of ACRONYM lies in its ability to create rich harmonic timbres through the modulation of the Wavemorphing section. The true analogue wavemorpher responds beautifully to audio rate modulation, and unique musical timbres can be patched up by modulating the wavemorpher with the Sub outputs, from mild to wild.

• Width: 12hp
• Depth: 44mm
• Current draw:
  +12V: 95mA
  -12V: 72mA
  +5V: 0mA

Download Manual
