Gamechanger Audio PLASMA VOICE Eurorack Module
A Eurorack synthesizer module that generates sounds through the manipulation of high-voltage electrical discharges
HOW IT WORKS

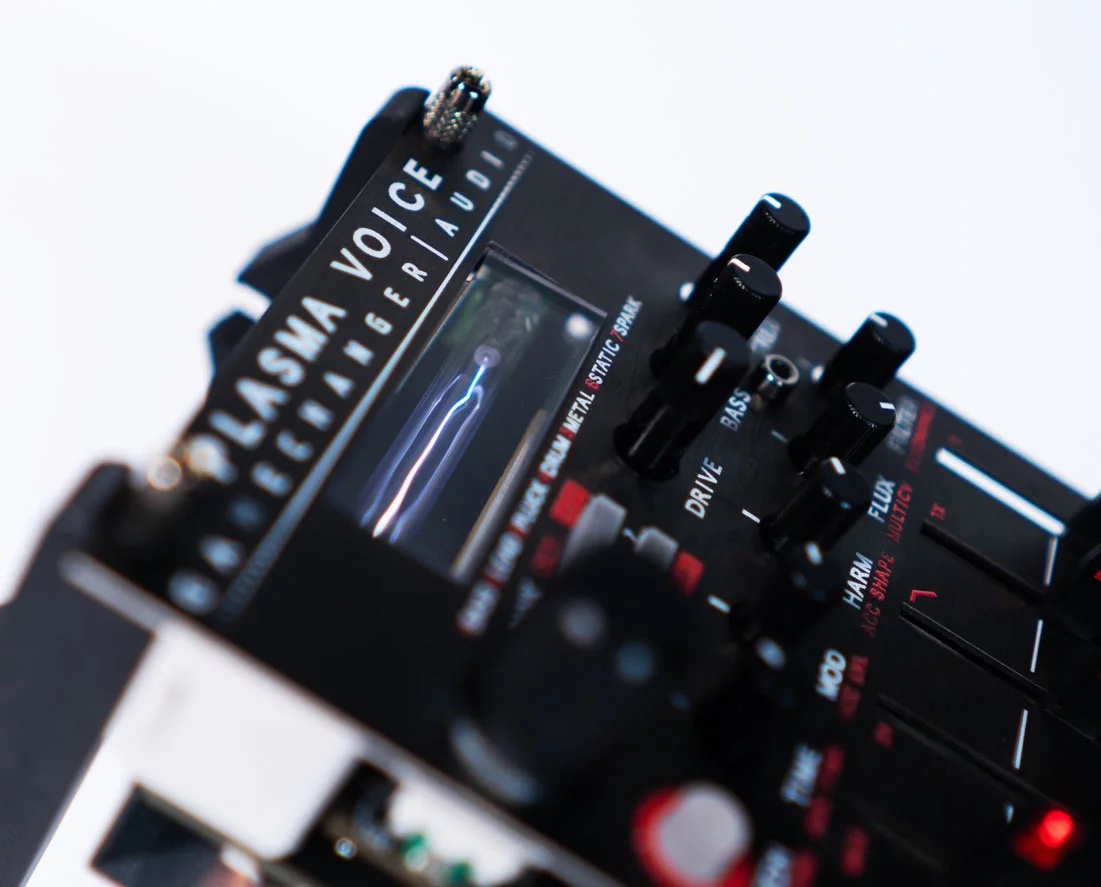

PLASMA Voice is a synthesizer module that generates sounds through the manipulation of high-voltage electrical discharges between two electrodes on a specially designed xenon-filled gas tube.
These discharges are converted to analog audio using a specialized rectifier circuit. The result is a mesmerizing electric sound that matches the visual intensity of the blue bolt of electricity.
The electric discharges are driven by a proprietary ultrasound pulse-width oscillator.
This oscillator is modulated by predefined samples and envelope shapes (or SOUNDS for simplicity’s sake) that you can select, trigger, waveshape and modulate with sliders and CV inputs.
This puts you in the control of the electrical discharges and the resulting sounds.
Experience New Sonic Possibilities
The module features selectable SOUNDS that are organized into BANKS each dedicated to specific musical parts:
1BASS 2LEAD 3PLUCK 4DRUM 5METAL 6STATIC 7SPARK
The SLIDERS allow you to modify each SOUND, often transforming it beyond the intended use defined by the BANK. We invite you to explore the sonic possibilities both wonderful and strange.
Fully Independent PLASMA Voice
PLASMA Voice is the latest addition to our PLASMA product line. Although it shares the same technology, previous products were specifically designed as distortion units. Most of the sound shaping parameters were set at optimal sweet spots to ensure stable distortion.
By utilizing the full potential of modulating the tube’s driver, we have created the first PLASMA product that doesn’t need an external sound source. It is a fully independent voice on its own.
Proprietary plasma tube driver and electromagnetic discharge detector
49 transformable SOUNDS across 7 BANKS
SOUNDS are complex digital synth engines that modulate the PLASMA tube driver to achieve various sounds. The engine building blocks are tube driver pulse width and frequency modulation, sample pitch modulation, envelope time stretch, wavefold, crossmod, suboctave modulation
Soft clipping DRIVE circuit
BASS and TREBLE frequency boost/cut EQ section
Analog state variable VCF (selectable 12dB/Oct LP or HP) with resonance amplifier
Analog output VCA
VCF and VCA are digitally controlled with internal analog control voltages
Audio output level +/-8V max
6 center Indent SLIDER potentiometers
PITCH +/- 1 oct (fine tune and octave settings are also available)
TIME – envelope time stretch
MOD – pitch modulation effect
HARM – harmonic content effect
FLUX – electric artefact effect
FILTER – cutoff with and without envelope modulation
5 center indent ATTENUVERTERS for CV inputs
ALT button for accessing the alternative SLIDER functions for FINE TUNE, ACCENT parameters and FILTER RESONANCE
Manual TRIGGER / GATE button
CLUTCH button for temporary parameter editing buffer
Push & turn ENCODER and a 7:7 LED indicator for SOUND & BANK selection, octave select and navigating the settings menu
7 CV inputs. One for each SLIDE and 1 assignable MULTI CV input as an additional CV for any of the SLIDERS or BANK & SOUND selection
Pitch CV 1V/Oct, +/-10V range
Parameter CV, +/-5V range
TRIGGER and ACCENT inputs: 2V minimum, rising and falling edge detect.
5 TRIGGER input modes: TRIG, GATE, LOOP, OSC, ON/OFF
7 ACCENT modes: ACC, DUCK, STARVE, CVFREEZE, JUMP, REVERSE, BURST
5 TRIGGER modes
(TRIG, GATE, LOOP, OSCILLATE, ON/OFF)
7 ACCENT modes
(ACENT, DUCK, STARVE, CV FREEZE, PITCH JUMP, REVERSE, BURST)
MULTICV assignment
MIDI channel select
Center pitch select
Master octave offset
FILTER mode select
Auto save of all settings
3.5mm MIDI IN jack, (DIN5 to 3.5mm adapter included)
MIDI support: Notes, Velocity, CC panel control, PC BANK & SOUND change, PC settings change, Channel 10 General Percussion Key Map, Pitchwheel, Modwheel
Potential firmware update via MIDI SysEx
Voltage: +/-12V DC, (10-16 pin cable included)
Power draw: Peak 220mA at +12V (mean 75mA), 35mA at -12V. 0 at +5V
Size: 16HP (W x H: 81.3 x 128.5mm)
Max depth: 35mm excl. knobs, 54mm incl. knobs
Mass: 190g
