BEFACO FX Boy w/effect cartridges　次回入荷分

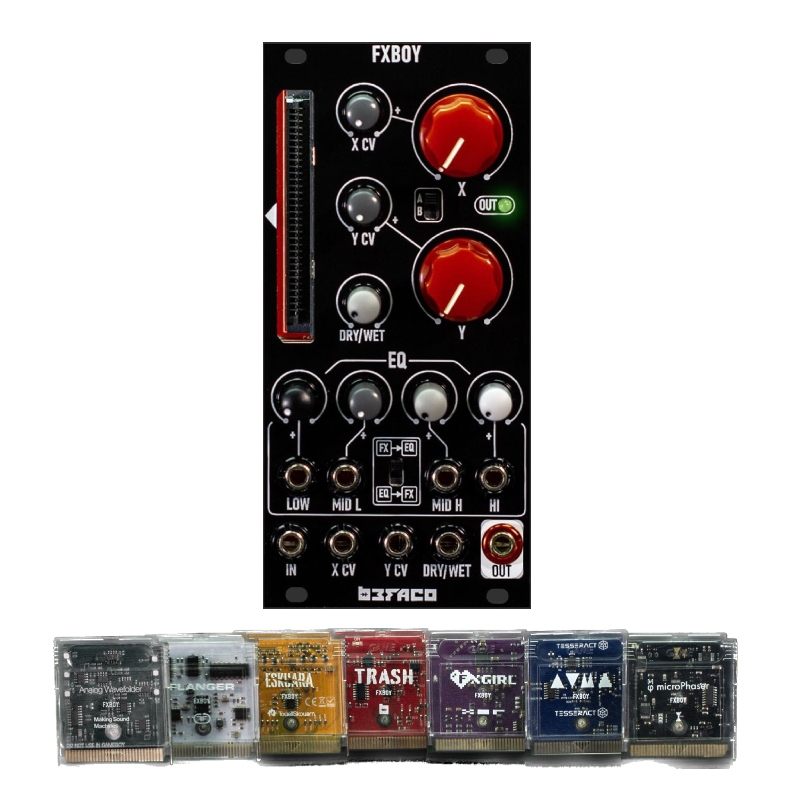

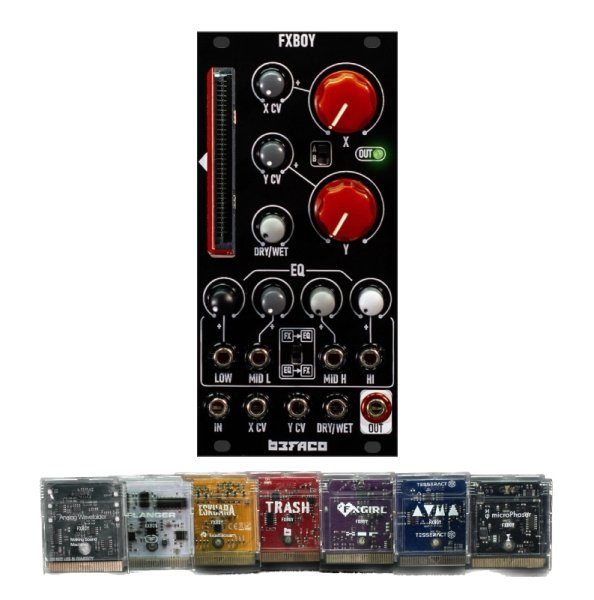

A Multi FX module based on game carts!

Fx Boy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control,  with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analog Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

Effect Cartridge includes:

• Befaco: Trash Harmonic Distortion
• Feedback: Flanger
• Making Sound Machines: Analog Wavefolder
• Tesseract Modular: AVMA bipolar VCA + wavefolder
• Instruo: Micro Phaser
• Touell Skouarn: Eskuara fuzz
• XOR: FX Girl digital effects

Technical Specifications

• CV control over all parameters and Dry/wet
• CV controllable four-band EQ, routable post or pre-effect.
• Selector for two different flavours of each cart.
• Open specifications to design your own carts
• Hot swap for all carts. (A tiny pop can occur depending on the cartridge design)

SPECS

• Current needs: +12V: 125mA, -12V: 100mA + Cartridge current draw
• Width: 12 HP
• Depth: 35 mm (including power connector)
• Aluminium front panel.
• Designed and assembled in Barcelona.

Documentation

• User Manual>>
