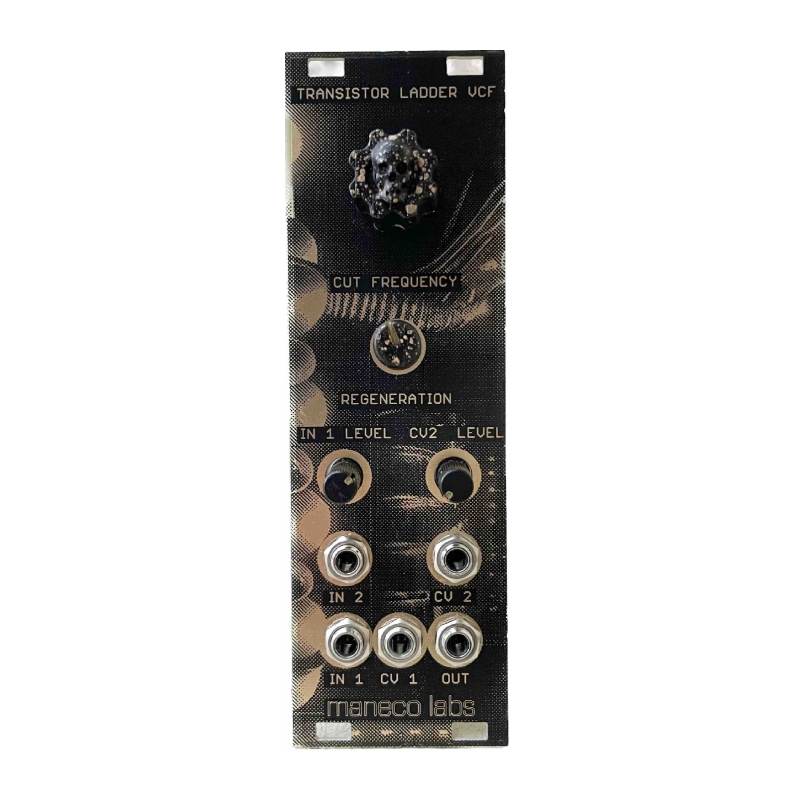

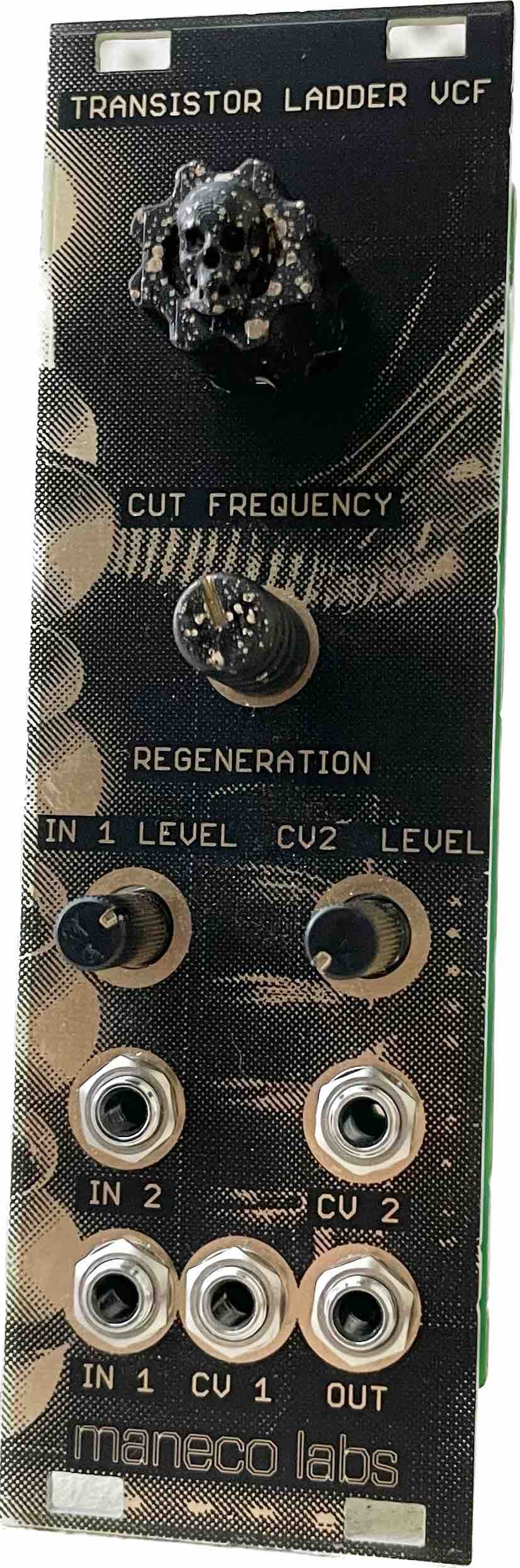

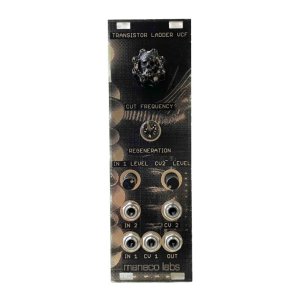

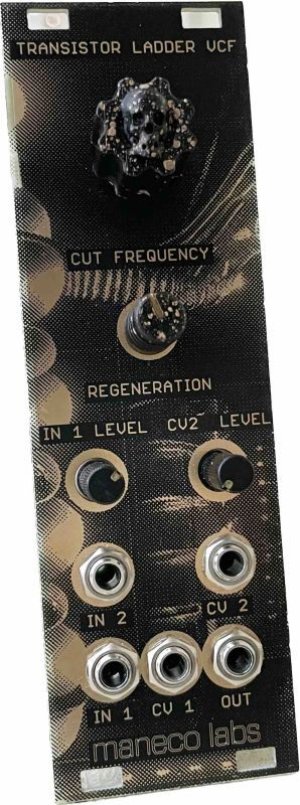

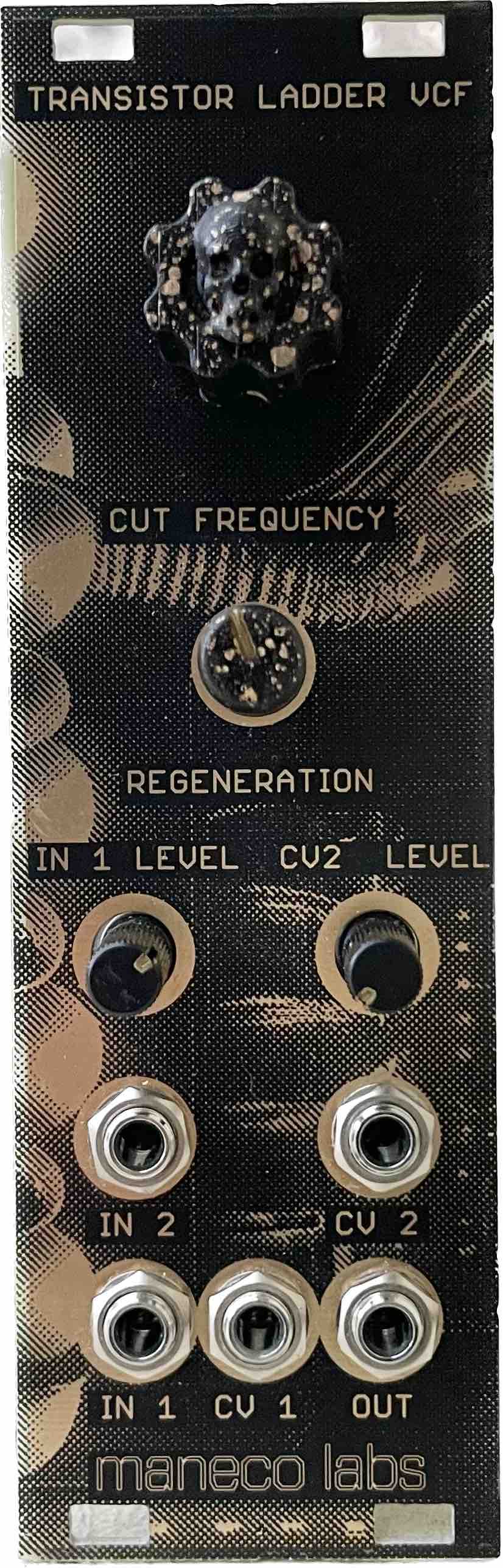

Maneco Labs Transistor ladder VCF (Eurorack)　

This is Maneco version for the iconic modular low pass filter by Bob Moog , in a compact and affordable eurorack module.

It includes two audio inputs, one with level control, and two external CV inputs, one with attenuator.

Controls:

Cut frequency : main cut off low pass frequency

Regeneration : resonance , also known as feedback or filter Q In 1 level : input level for audio IN 1

CV 2 : attenuator for control voltage input 2

Jacks :

In1 , In 2 : audio inputs CV1 , CV2 : Control voltage inputs OUT : audio output

specs:

8 hp size, +12v 50 milliamps , -12v 10 milliamps
