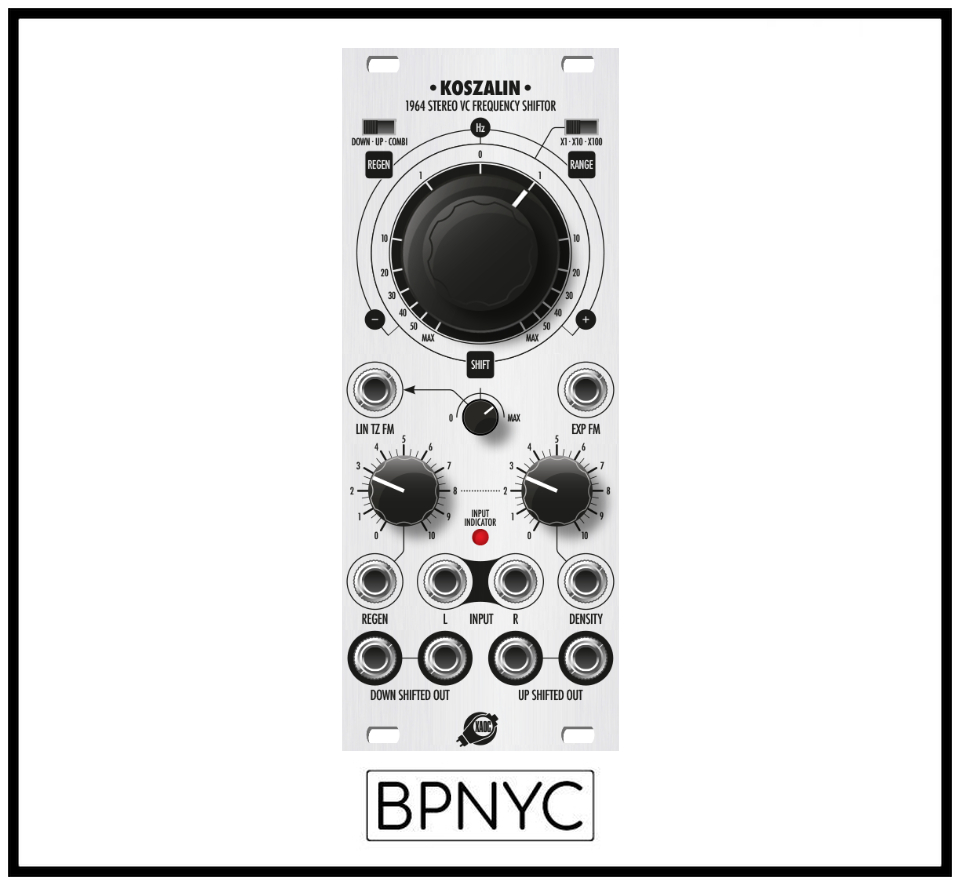

Xaoc Devices KOSZALIN

DESCRIPTION

Koszalin is a stereo frequency shifter (2 ins/4 outs) offering both quasi-exponential and linear frequency modulation as well as full stereo feedback under voltage control. Frequency shifting results in a linear translation of the signal spectrum, which produces a variety of atonal sounds. It should not be confused with frequency scaling, also known as pitch shifting. Complex phase cancellation patterns occurring with frequency shifting and deep feedback produce spectacular barber-pole effects.

Koszalin offers direct controls over feedback amount, feedback routing, and feedback response. It also facilitates frequency modulation of any stereo audio signal, thanks to the linear TZFM input. Koszalin is a digital module with a DSP behind an analog interface.

FEATURES
  • Full stereo frequency shifting with 2 inputs and 4 outputs
  • 3 ranges of shift: 50Hz, 500Hz, and 5kHz
  • Independent exponential and linear thru-zero control inputs
  • Internal feedback under voltage control
TECHNICAL DETAILS
  • 10hp, skiff friendly
  • Current draw: +140mA/-30mA
  • Reverse power protection

USER MANUAL
MODULAR GRID




DEMOS & TUTORIALS






















Xaoc Devices KOSZALIN

販売価格: 58,805円 [通常販売価格: 61,900円]

重さ: 1lb

数量:
お問い合わせ

*** お問い合わせ&予約受付中 ***
当店で扱っている各商品は大量生産ではありません。 メーカーにも在庫に限りがあります...
確実に欲しい商品に関しては早めに予約/在庫確認する事をおすすめします...
