Divkid Mutes MK2

DivKid MUTES mk2

Mutes goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.

Based on VCA for more precision in both modulation and audio as well as click-free muting.

Three-position switch: MOMENTARY signal pass-through (it springs back to the center when released); OFF (or muted) in the center; and ON to the right.

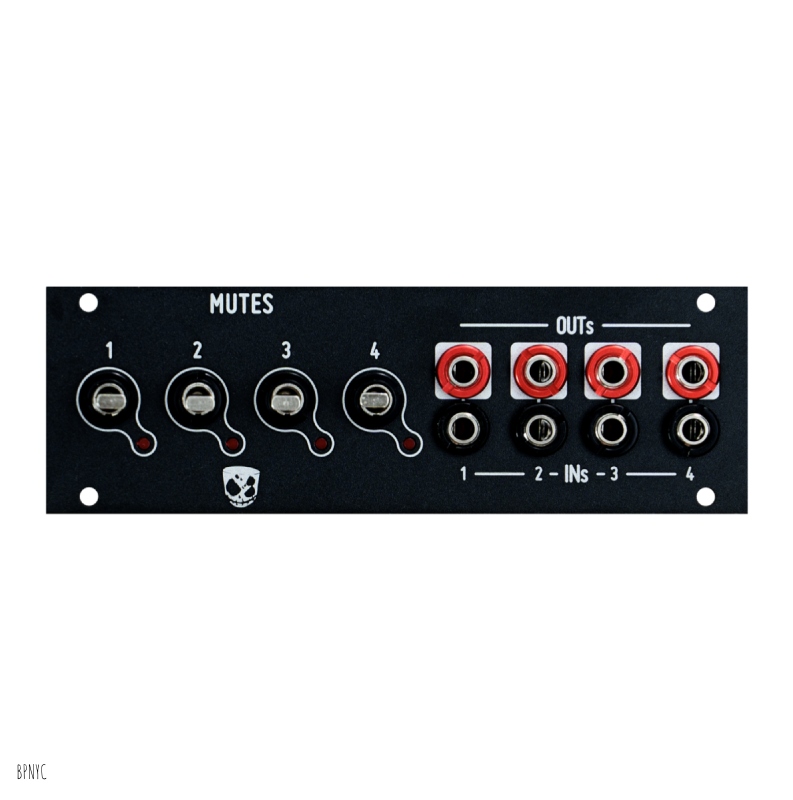

The module can be easily converted into a 1U version (panel included).



FEATURES

  •  LEDs to visualise signals
  • 3 way momentary – off – on switching
  • Buffered and cascading normalising of inputs
  • VCA based muting
  • Interchangeable panel to 1U

SPECS

  • Current needs: +12V:40mA, -12V:15mA
  • Width: 4 HP
  • Depth assembled version:  20 mm
  • Depth DIY version: 40 mm
  • Designed, kits prepared and completed modules assembled in Barcelona
Divkid Mutes MK2

販売価格: 23,900円

重さ: 1lb

数量:
