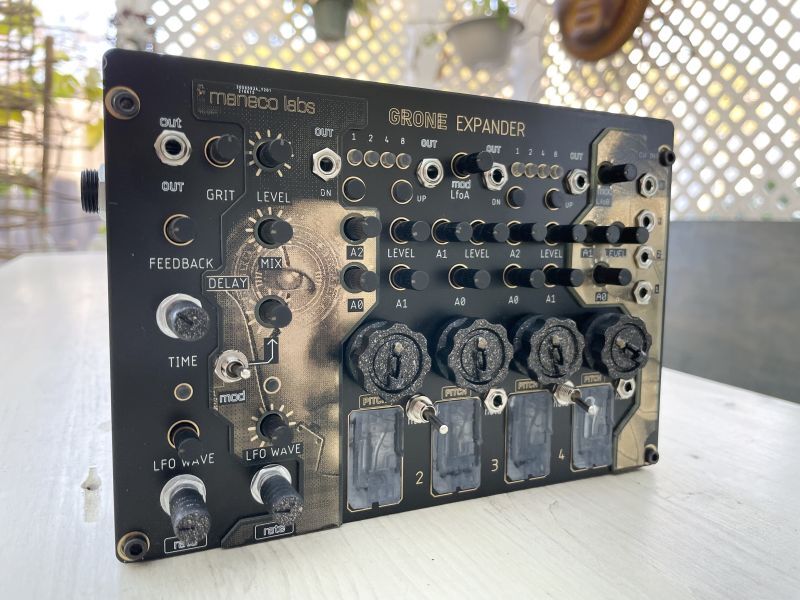

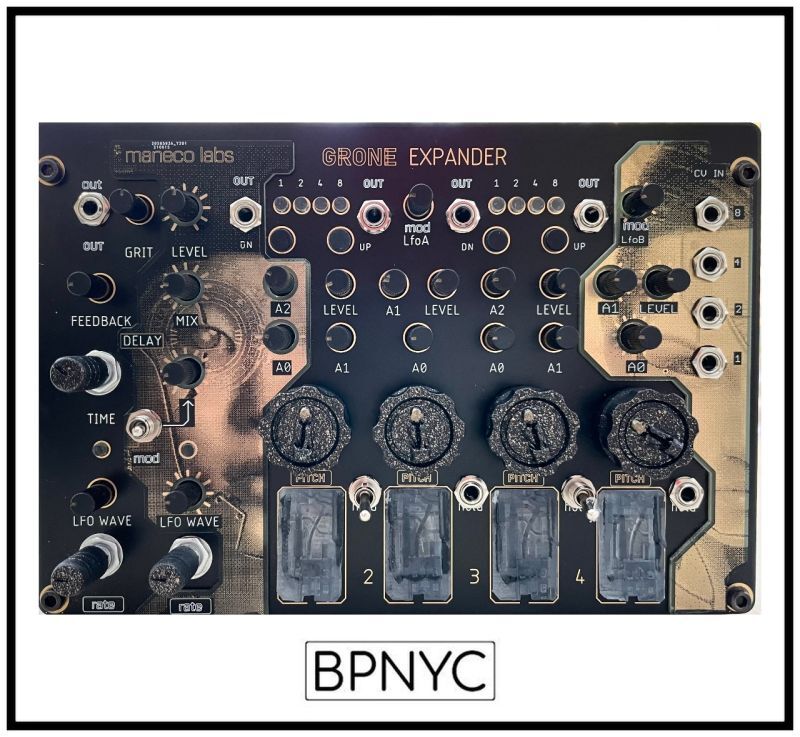

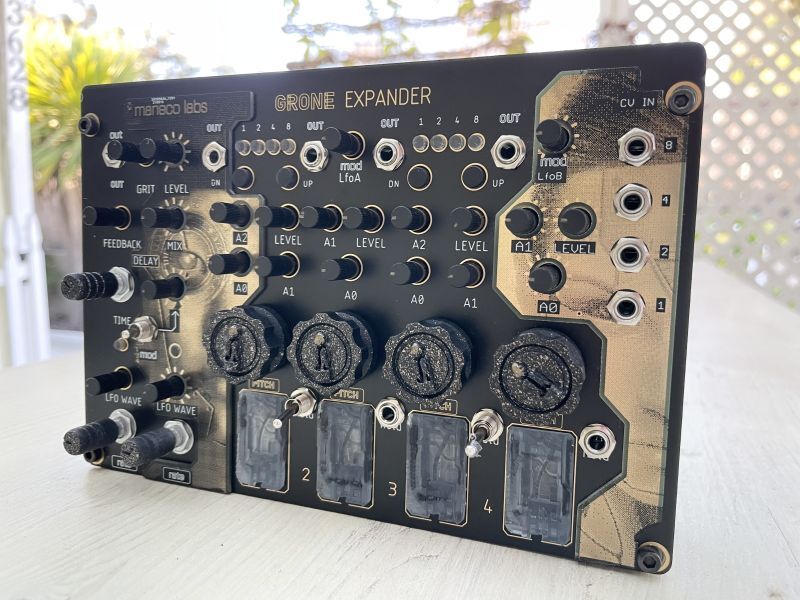

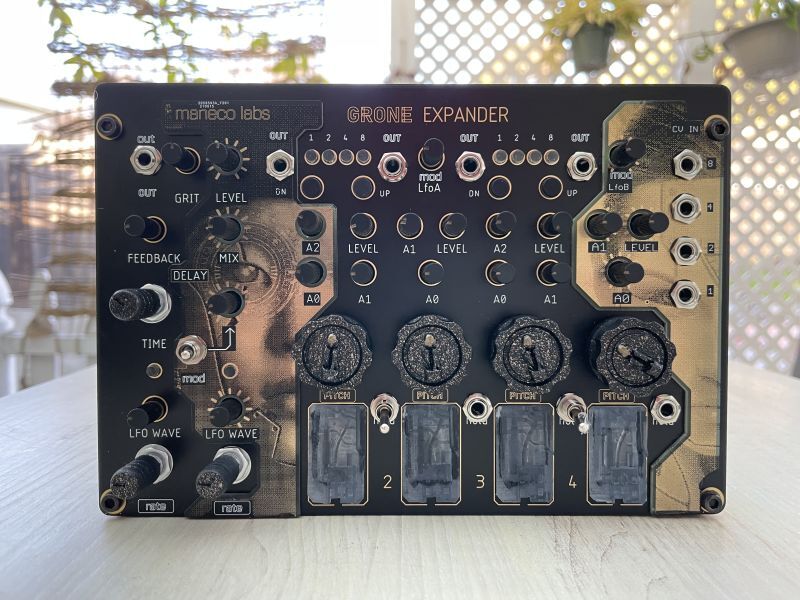

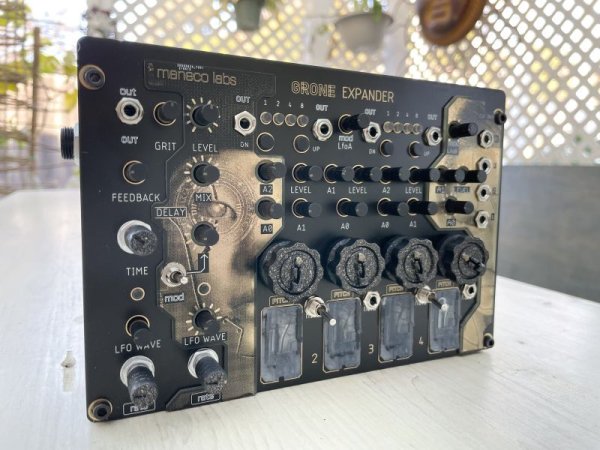

Maneco Labs GRONE dark drone machine EXPANDER　テーブルトップ

Download Specification PDF ⇩

• 4 voice touch controlled drone module
• 2 Drone oscillators same as Grone
• 2 wavetable oscillators
• 2 multi waveform lfo’s
• Modulated delay section
• Dirt stage at output
• Can be used stand alone or processed through grone external input

Osc 1 and 3 - Bytebeat oscillators

Generates sound based on equations converted to analog signals , there are sixteen equations selected by Up and Down switches. Four LEDs indicate equation number in binary mode. Three Pots modify numbers used by the equation, A0 , A1 and A2 , fourth pot Sample Rate controls pitch and speed of the oscillation. There’s an Output Level pot for the oscillator and a dedicated jack for patching the Oscillator sound to external modules .

Hold toggle switches select between fast decay, long decay and hold mode, for the touch trigger input. There are CV inputs for pitch on these two oscillators

Osc 2 and 4 -Wavetable oscillators

Digital oscillators, touch controlled or gate controlled by gate jacks, pitch is controlled by pitch pot, modulation by LFO A or LFO B and cv inputs.

A0 pot selects waveform, A1 pot morphs between two waveforms.

There are individual output jacks.

LFO 1 and 2

Low frequency oscillator routed to MOD inputs for oscillators 2 and 4, also to modulation input for delay section, selectable by toggle switch , RATE and WAVEFORM shape

pots.
