Endorphin.es Total Recall

BABY, YOU MAKE ME WISH I HAD THREE HANDS!

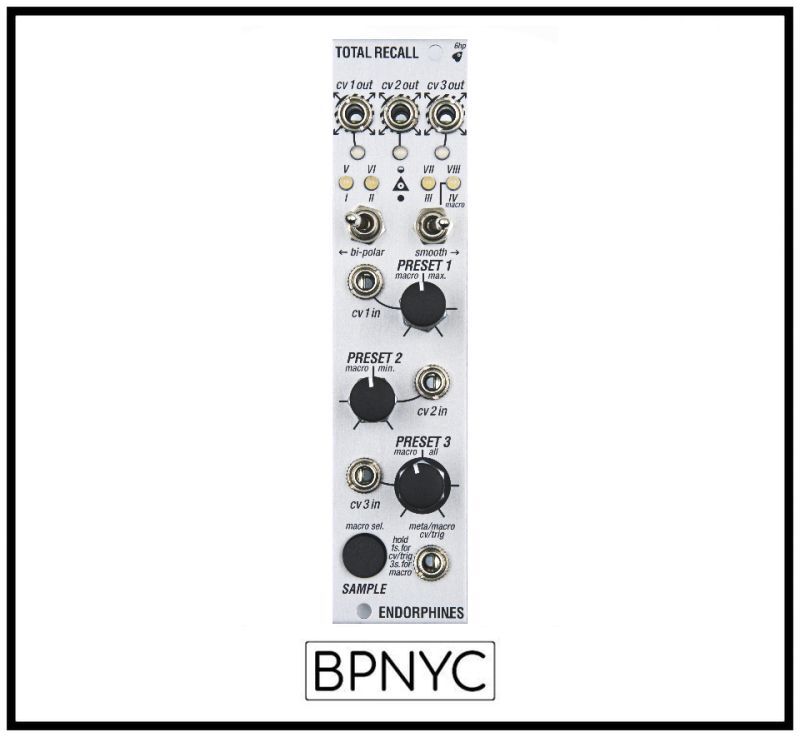

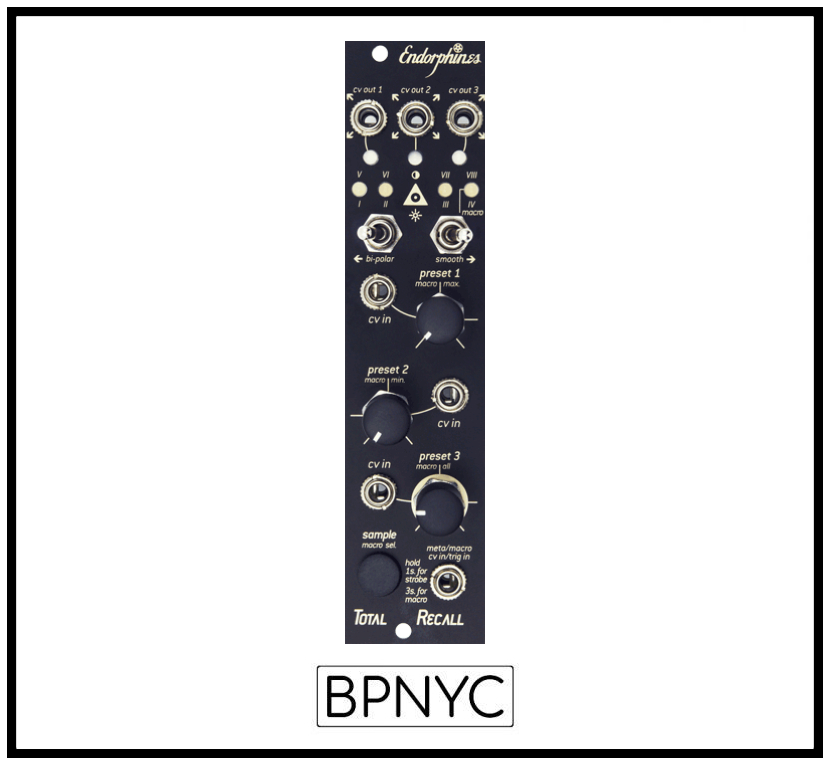

TOTAL RECALL – the 6 HP module designed to ease up transitions in live sets by controlling 3 (!) CVs at once – just by the use of one soulful hand. Intuitive to set up the desired voltages to control anything in your modular system that accepts CV (either unipolar 0-5V or bipolar -5-+5V). The preset manager/multistage CV controller rocks a macro feature no one would ever want to miss in future live performances.

HARD FACTS

• 6 HP width, 3x CV preset manager/multistage and macro controller for Eurorack
• 3 channel control voltage generator/attenuator/attenuverter
• 8 preset CV manager with two banks: bipolar -5…+5V and unipolar 0…+5V
• Instant, slewed or continuous change between stored CV values
• 3-channel macro CV generator with smooth min./max. control via CV, trigger or manually
• CV acquisition: 16 bits SDADCs, CV outputs: 12 bits DACs
• Depth: 30 mm (with plugged ribbon cable)
• Power requirements: +12V: 55mA, -12V: 15mA
