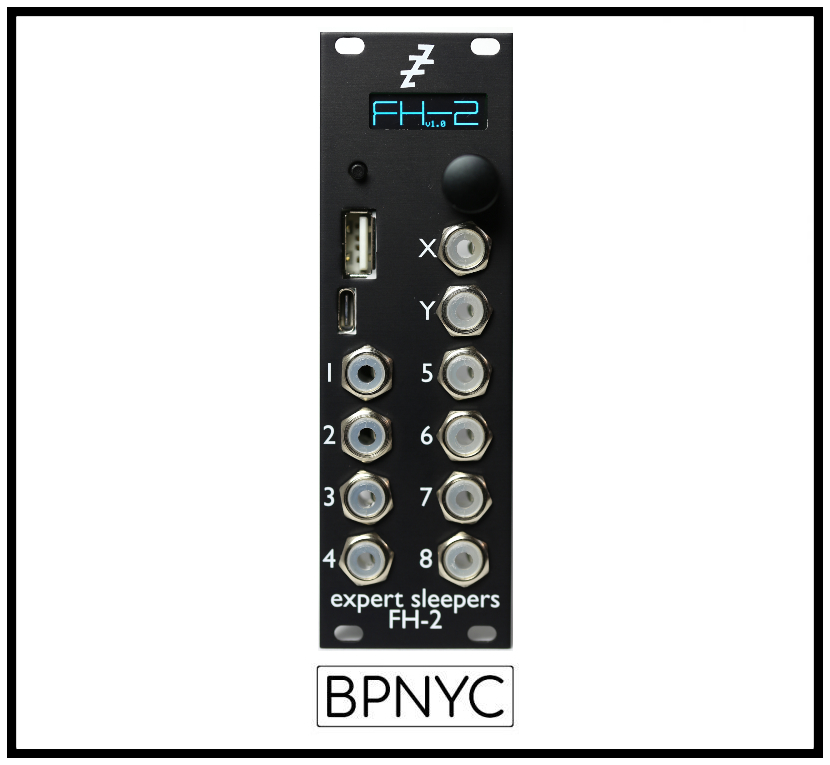

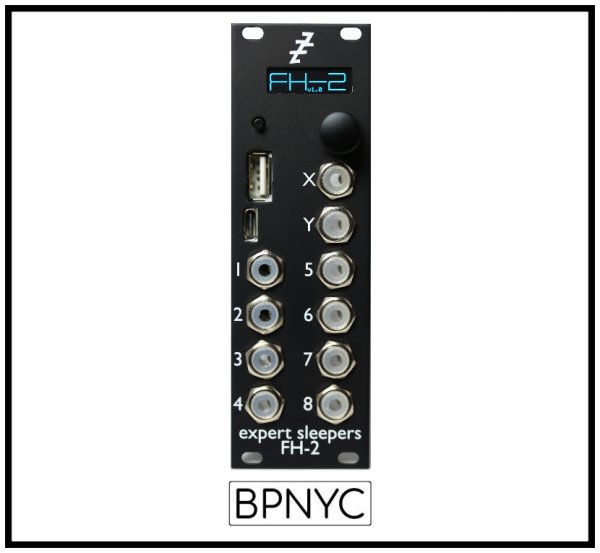

Expert Sleepers FH-2 'factotum'

The FH-2 is an 8HP Eurorack module combining the following functions:

  • MIDI to CV conversion including polyphonic and MPE operation.
    • The FH-2 is simultaneously a USB MIDI host, a USB MIDI device, and also supports traditional 5-pin DIN MIDI.
    • Support for drum triggers including triggers with velocity or accents.
    • Support for automatic VCO calibration (similar to that in Silent Way).
  • Clock generation and synchronisation.
    • MIDI clock (in and out), analogue clock (in and out), or internal clock (BPM or tap tempo).
  • LFO generation, including tempo-synced LFOs.
  • Arpeggiators.
  • Euclidean pattern generators.

The FH-2 has 8 high precision CV outputs, expandable to 64 with the FHX-8CV Expander. Up to 64 additional gate/trigger/clock outputs can also be added with the FHX-8GT Gate Expander.

The module can be completely configured via its own UI, but a convenient web-based configuration tool is also available here, which communicates with the module directly via MIDI SysEx.

Typical usages



With a MIDI keyboard

Up to 16 note polyphonic conversion, with optional pitch/gate/velocity etc. CVs per note. Also features arpeggiation, keyboard splits and more.



With an MPE controller

Up to 16 simultaneous touches converted with full position/pressure/glide etc. per touch.



With a MIDI controller

Up to 64 outputs. Direct control of CVs from faders, flexible and syncable LFOs, triggers from pads etc.



With a 'groovebox'

Multiple clock outs at different divisions, run/stop triggers etc. Groovebox, FH-2, or another module can be the clock master.



With a computer/tablet/phone

All of the above, plus SysEx for configuration of the FH-2.



As a clock generator

The FH-2 can operate as the clocking centre of your modular, also generating (syncable) LFOs, with no USB connection.



Reviews



Video review by Color My Sound:
(Polish version here)
The FH-2 was reviewed by c't magazine (musik kreativ special 2018).
"Nahezu konkurrenzlos ... Die Möglichkeiten sind immens" ("Almost unrivaled at present ... The possibilities are immense" via Google Translate)

Demos











Specifications

The FH-2's specifications are as follows:

  • Panel width: 8HP
  • Module depth: 48mm
  • Current draw: 118mA on the +12V rail, 48mA on the -12V railplus
       the power requirement of any attached USB device. See the
    manual
       for information on calculating the current draw on the +12V rail from the USB device.
  • Outputs: 8
    • Digital-to-analogue conversion: 14 bit
    • Voltage range: software selectable between ±5V, 0-10V
  • Inputs: 2 CV inputs
  • USB host:
    • Type A connector
    • Class Compliant USB MIDI host.
    • Class Compliant USB HID host (for mice, gamepads etc.).
    • Supports USB hubs.
  • USB device:
    • Type C connector
    • Class Compliant USB MIDI device (plug'n'play with macOS, Windows, Linux and iOS).
  • Expansion:
    • Header for connecting FHX-8CV or FHX-8GT expanders.
    • Header for 5-pin DIN MIDI via a compatible breakout.
    • An FH-1 may also be used as an expander, over USB.
  • Controls: 1 rotary encoder (with push button), 1 push button
  • 0.91" OLED display

For more detail, please see the user manual.
