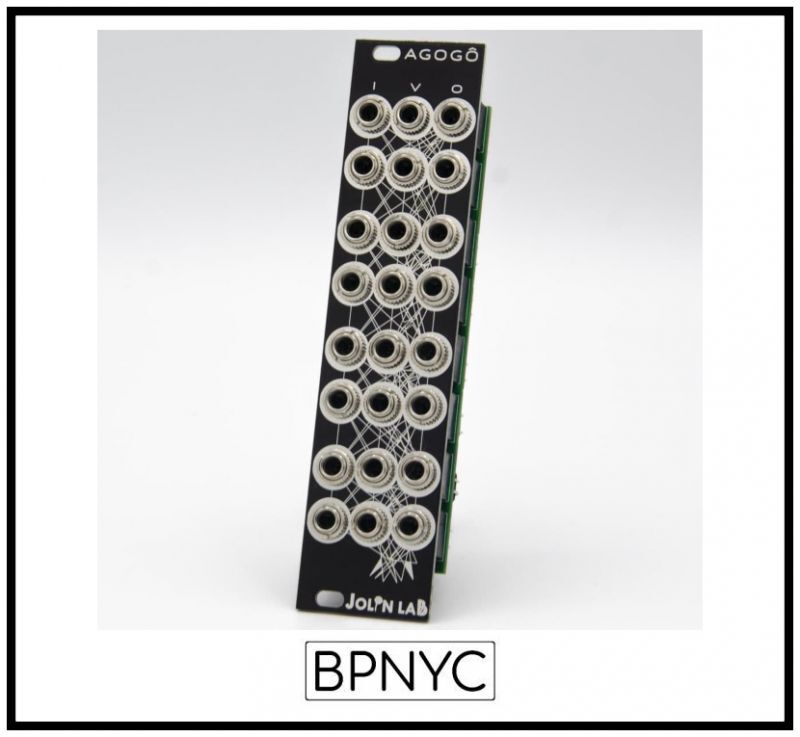

Jolin Lab AGOGÔ Black Mirror - 8 Chained Vactrol LPGs

-Stream of Gates- “ゲートの小川



AGOGÔは直列構成、8進数のアナログバクトロルベースのローパスゲート/ミキサーです。



その入力、CV、出力の一つ一つがノーマライズされ、次のものにバッファされます:
オーディオとCV、両方のマルチプライヤー/ミキサーとして使用できます。
その構成は小川を流れる水をイメージしてください。



このモジュールには3つの小川があると頭に描いて見てください

"I" - 入力

"V" - CVとモジュレーション

"O" - 出力

"I"は上から下に向かって流れています。

最初のソケットに挿入された入力はバッファリングされ、次のソケットにそのまま流れていきます。ケーブルが挿入されている場合は、その接続が中断されます。



"V"も同様に動作しますが、バクトロルを連鎖させた構成のため割込みに若干の遅延があります。つまり、1つの制御電圧ですべてのゲートを同時に開くことができるのです。



“I”"V"の機能を組み合わせることで、例えば、1つの信号を8つの異なるCVでコントロールしたり、8つの異なるソースを同じCVでコントロールしたりすることができます。小川はどの位置でも妨げできるので、すべてのLPGを個別に、またはペアで使用して、ステレオエフェクトやセンド/リターンの分割に使用することができます。



最後の小川”O”は流れの終点である河口を表しています。アクティブミキサーとして機能し、8つ以上の信号をミックスすることができます。他の小川と同様にサブミックスや個別のアウトを作成するために、任意のポイントで接続を妨げることができます。



背面にあるヘッダーを使って更に多くのユニットをチェーン接続することができます。このチェーン構成は最終出力にサチュレーションを加えます。



  • 180 mA +12V
  • 100 mA -12V
  • 0 mA 5V
  • 深さ28 mm



Stream of Gates.

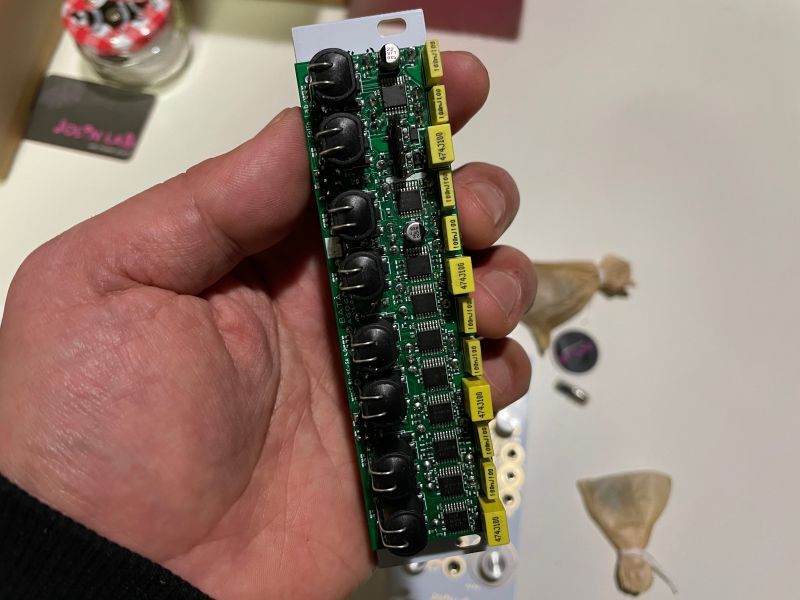

AGOGÔ is an octal analogue vactrol-based low pass gate and mixer in a cascade
configuration.

Each one of its inputs, CVs and outputs are normalized and buffered to the next one: it can be used as a multiplier and a mixer for both audio and CV.
One way to imagine AGOGÔ is to use water and streams.
In the module we have three rivers:

“I” – inputs

“V” – CVs and modulations and

“O” – outputs

“I” is flowing from top to bottom. An input inserted in the first socket will be buffered and it will flow unaltered in the next. If a cable is inserted, the connection will be interrupted.
“V” works in the same way but there is some latency in the interruption due to its chained vactrol configuration. This means that with a single control voltage you can open all the gates simultaneously.

Combining the features of both “I” and “V” you can – for example – control a single signal with 8 different CVs or 8 different sources with the same CV. The streams can be interrupted in any point, this means that all the LPGs can be used individually or in pair for stereo effects or send/return divisions.

The last stream, “O” represents the end of the flow, the river mouth. It acts as an active mixer, letting you mix 8 or more signals. As in the other streams, the connection can be interrupted in any given point to create sub mixes or individual outs.

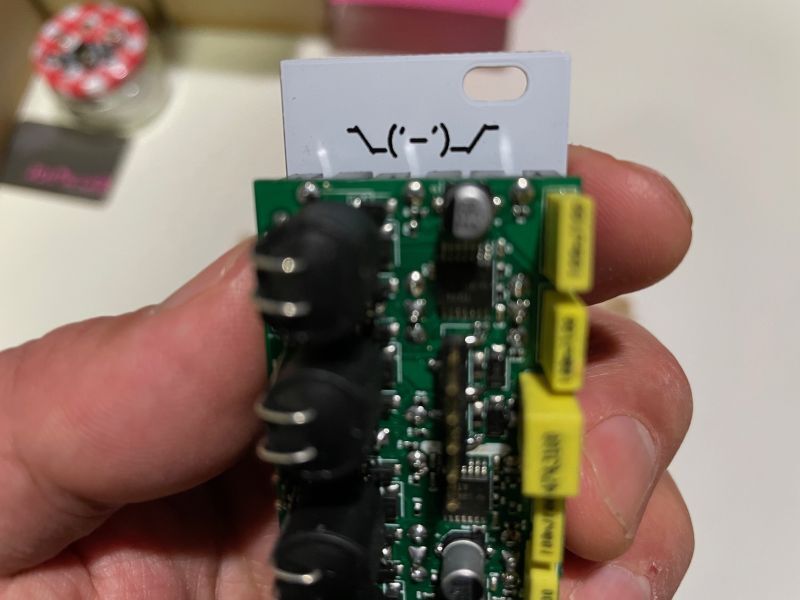

More units can be chained together thanks to headers on the back. This chained configuration will add saturation to the final out.



  • 180 mA +12V
  • 100 mA -12V
  • 0 mA 5V
  • 28 mm deep

[manual]

Jolin Lab AGOGÔ Black Mirror - 8 Chained Vactrol LPGs

販売価格: 54,165円 [通常販売価格: 55,840円]

重さ: 1lb
