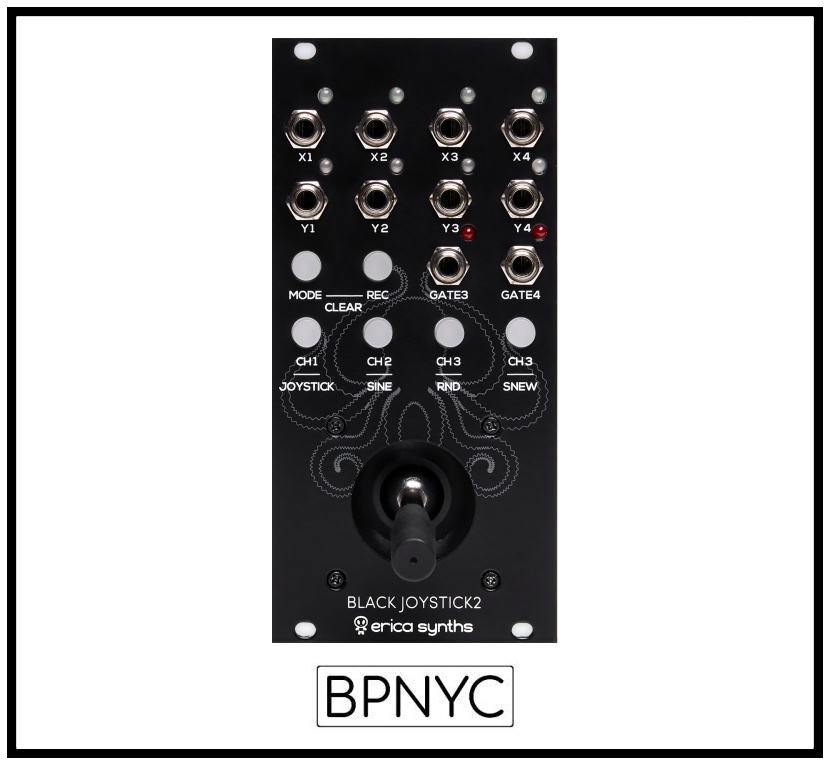

Erica Synths Black Joystick2 is 4 channel (2 axis on each channel) multi functional CV and sound source – joystick, movement recorder, distinct LFO and drone/noise oscillator. It provides great interaction with the modular system and allows to develop unconventional modulation patterns easily.
Features
- 8 simultaneous CV outputs
- 2 gate outputs
- 4 motion record channels
- Sine and Random LFOs with adjustable frequency and amplitude
- Drone/noise oscillator
- Gate record
- Two 4-position CV panners
- Skiff friendly design
- An octopus
Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. Erica Black Series consist of range of modules that are needed to put together entire synth.
Technical specifications:
| CV output amplitude | -5V – +5V |
| LFO frequency range | 0.1Hz – 5Hz |
| Drone oscillator frequency range | 50Hz - 1kHz |
| Max motion record time | 8” per channel |
| Panel width | 12HP |
| Module depth | 30mm |
| Power consumption | 71mA@+12V, 20mA@-12V |
Manuals book
- User manual — Feb. 12, 2021
