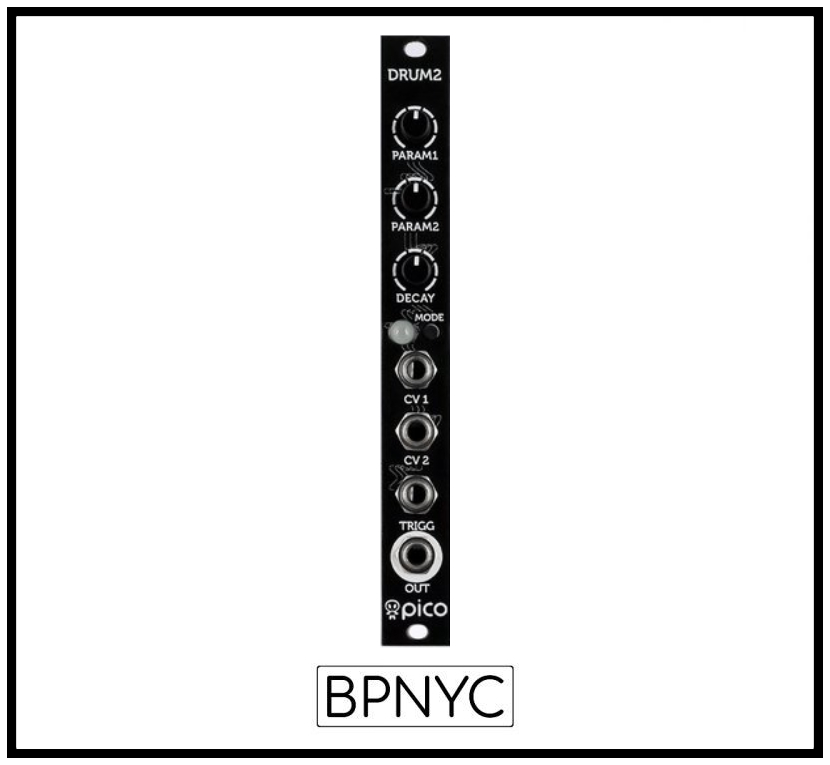

Erica Synths Pico DRUM 2

Pico Drum2 is compact yet versatile percussion synthesizer in a 3 HP eurorack module. It features 8 drum synthesis algorithms created to deliver distinct sounds to your modular system. Each algorithm offers a lot of flexibility therefore a big sounding bass drum and a squelchy snare can be dialled in within the same algorithm. It also tracks 1V/Oct and all parameters can be mapped to the CV1 input.

Features

  • 8 percussion algorithms
  • 3 parameters per algorithm
  • 1V/Oct tracking
  • CV control over all parameters
  • CV controlled algorithm switching
  • Input protection against over voltage
  • Protection against reverse PSU connection

User Manual

Technical specifications:

Output level10Vptp
CV level (full span)-5V - +5V
Power consumption+28mA, -5mA
Module width3HP
Module depth35mm
Erica Synths Pico DRUM 2

販売価格: 16,900円

重さ: 1lb

数量:
お問い合わせ
