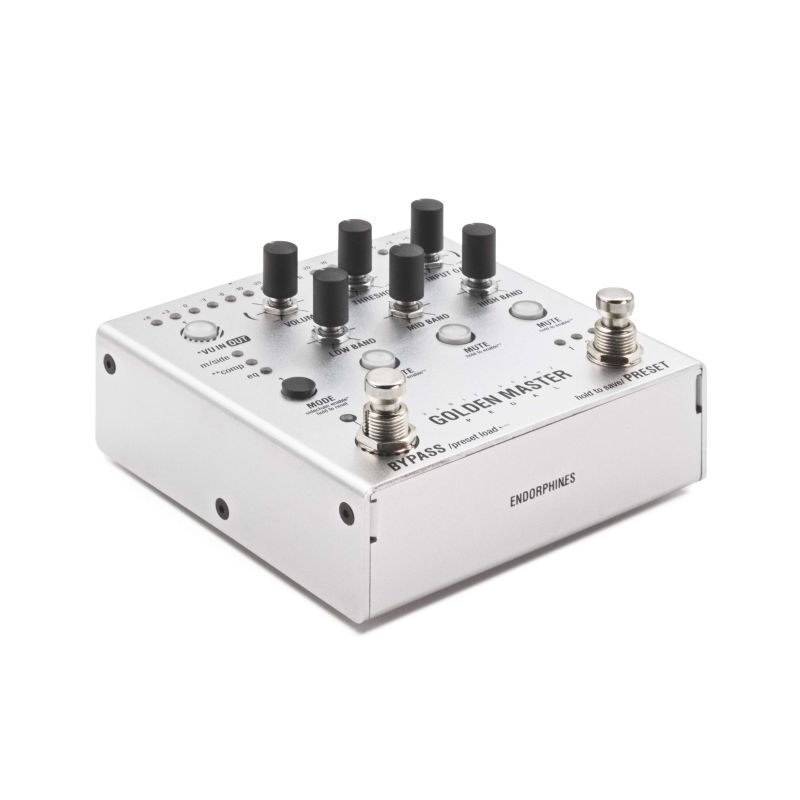

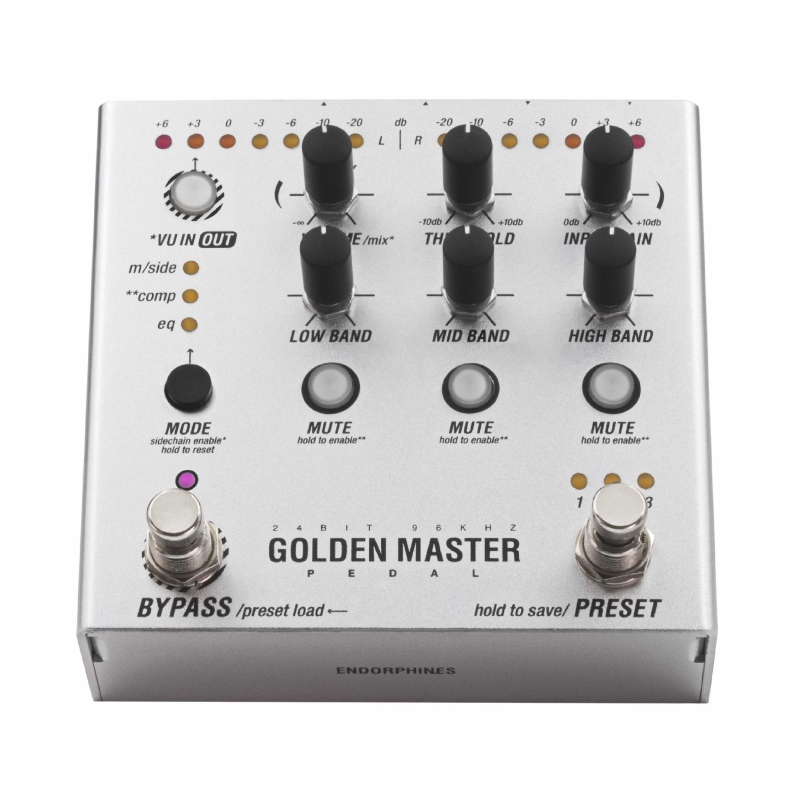

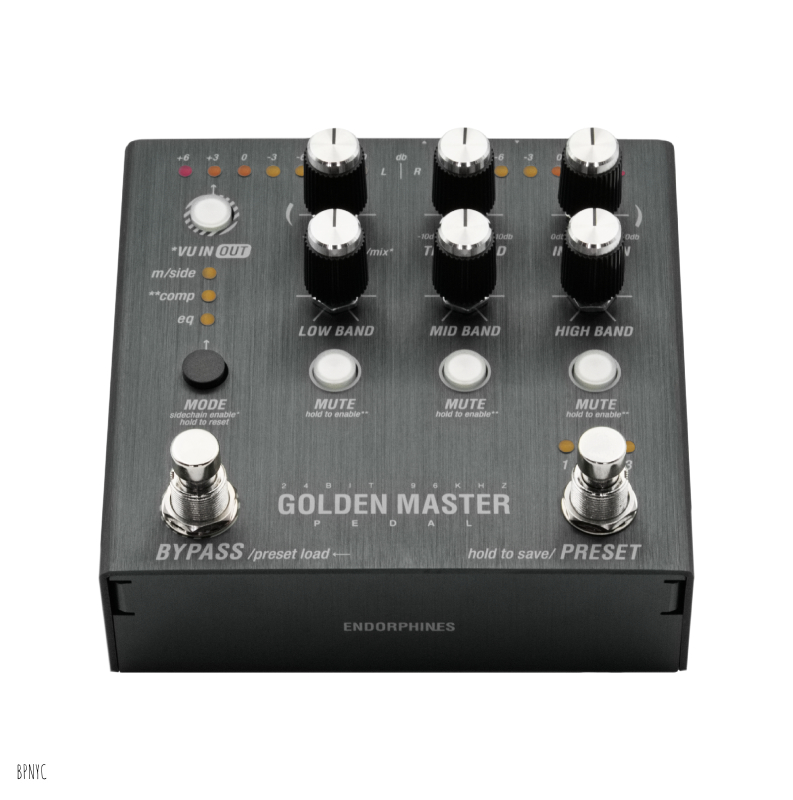

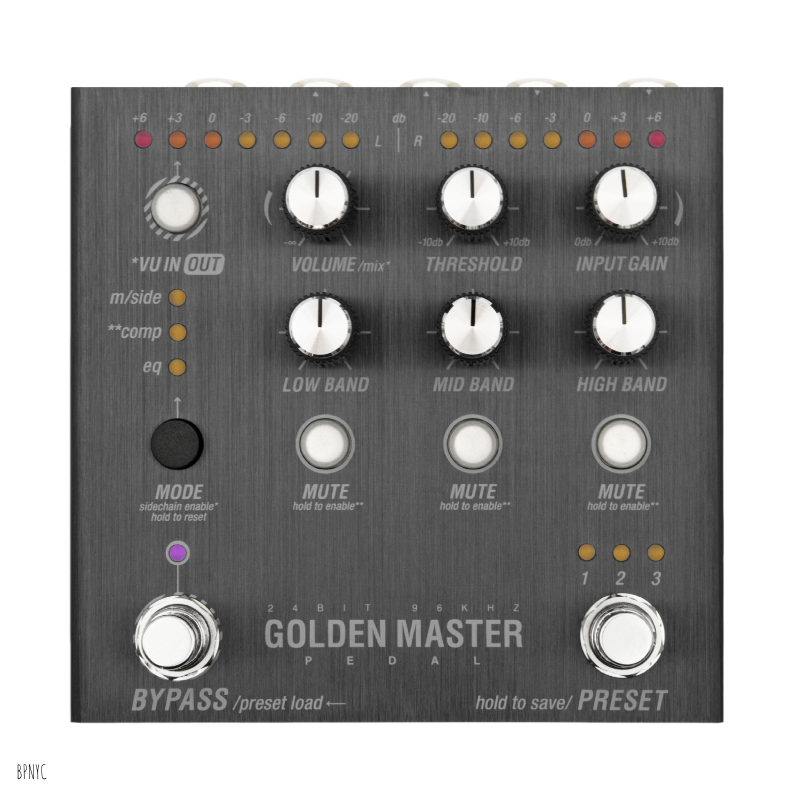

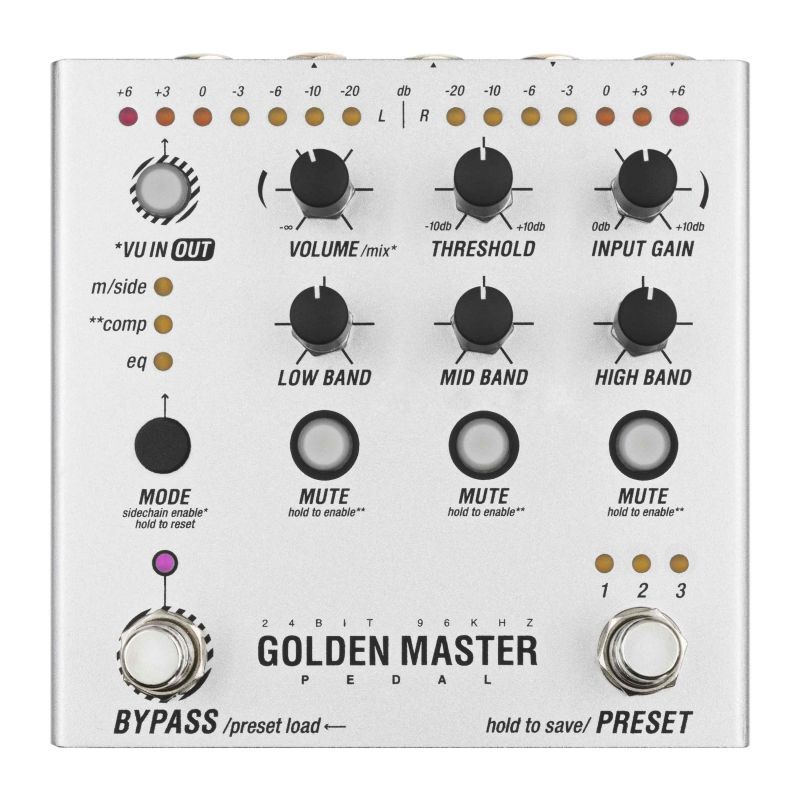

Endorphin.es GOLDEN MASTER PEDAL　次回入荷分

FINALIZE!

Based on our GOLDEN MASTER eurorack module and our experience in electronic live music performances, we developed GOLDEN MASTER – a multiband processor PEDAL with surprisingly wide application palette: from guitarists (and especially bass guitarists) to pedalboards’ or entire electronic mix  end-of-chain processor to deliver high pressure audio for live concerts and venues: sound loud and punchy without overloading the master limiter.

• multiband processor consists of EQ, Compressor and Mid/Side processor all three available at the same time

• 24 bit 96 kHz audio I/O with 32 bit internal processing

• stereo widener for each of the 3 bands

• high impedance inputs, pseudo-balanced outputs: works also as a DI-box on stage

• one knob compressor per band along with global threshold allows you to intuitively achieve results

• dedicated expression / sidechain input

• two footswitches let you select 3 presets and bypass with your feet

MANUAL: HERE

TECHNICAL SPECIFICATIONS

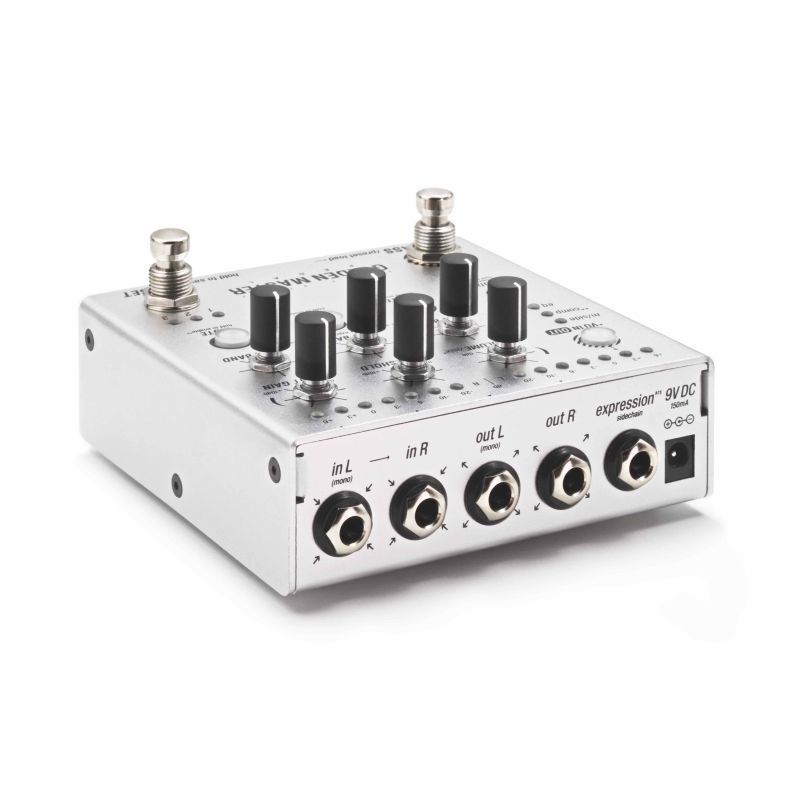

Audio input impedance: 500 kΩ, output impedance: 100 Ω

Audio input: up to +12 dBV, 1/4" or 6.35mm TS unbalanced

Audio outputs: 1/4 or 6.35mm TS unbalanced or or TRS balanced (pseudo-balanced outputs)

Power: 2.1mm tip / 5.5mm barrel DC jack, 150 mA minimum, 9V (adapter not included)

Bypass options: true-stereo on electromechanical relays, buffered

Audio I/O: 24 bit, 96 kHz with 32 bit floating point internal processing

Dimensions: 125mm x 125 mm x 60 mm (5″ x 5″ x 2 ⅓ ″)

Weight: 450 gram (1 lb)
