Endorphin.es GHOST PEDAL　

ENDORPHIN.ES X ANDREW HUANG

MULTI – DIMENSIONAL EFFECTS CHAIN PROCESSOR

Immerse yourself and go beyond the boundaries of what is possible with a conventional guitar or synth pedal. GHOST PEDAL brings you new possibilities of tone shaping with its state of the art flexible audio routing chain, allowing you to jump between dimensions with a single press of a button.

From earth shaking subharmonics and distorted drones to angelic shimmer reverbs and anything in between, GHOST is a PEDAL for the adventurous sound designers and the most demanding guitar and synth players. Intuitive UI coupled with hands-on control and preset storage allows you to stay in the now and focus on your performance.

• unique user interface showing parameter values and real-time modulations

• line or high-impedance instrument inputs with cabinet simulator

• full MIDI control over every parameter incl. MIDI clock over LFO and delay

• true relay stereo, buffered and trails bypass modes

• LFO and expression pedal assignments to any parameter

• delay with looper, 3 reverb and 3 filter types, incl. comb with resonator, six possible routing variations

• reverb freeze, delay looper, spring reverb with virtual spring excite

• 24 bit 96 kHz audio I/O with 32 bit internal processing

• three footswitches let you change assignable parameters (tap tempo/looper/freeze/spring excite), select presets and bypass with your feet

• MANUAL: HERE

•

TECHNICAL SPECIFICATIONS

Audio input impedance: 100 kΩ (line) / 1 MΩ (instrument)

Audio output impedance: 100 Ω

Audio input range: up to +12 dBV, instrument amplification +11dB

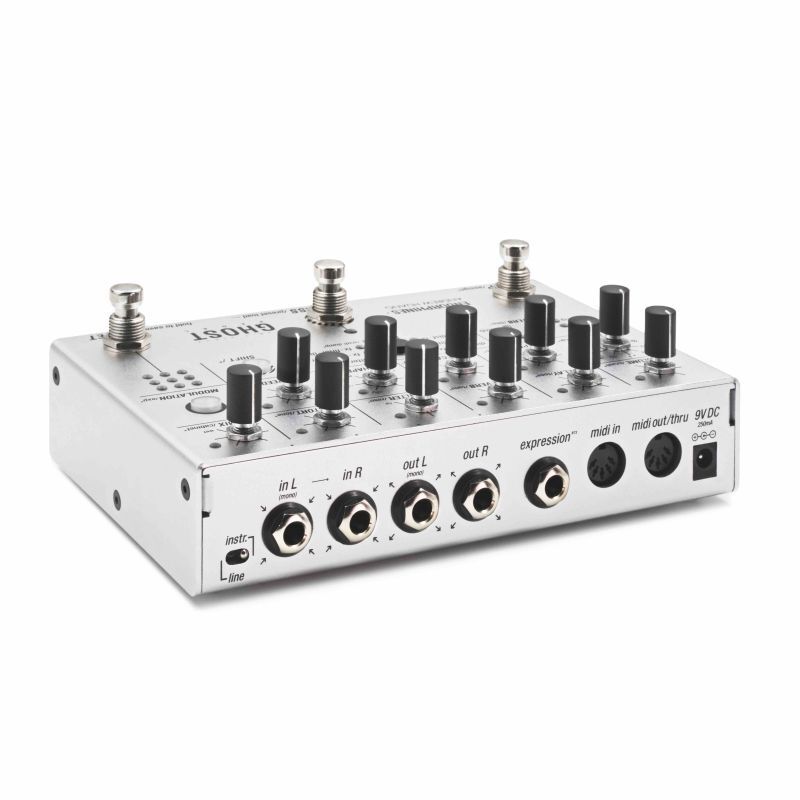

Audio connectors: 1/4 or 6.35mm TS unbalanced, MIDI connectors: DIN-5, power connector: 2.1mm tip / 5.5mm barrel DC jack

Bypass options: true-stereo on electromechanical relays, buffered, trails

Audio I/O: 24 bit, 96 kHz with 32 bit floating point internal processing

Current draw: 250 mA minimum, 9V (adapter not included)

Dimensions: 190 mm x 125 mm x 60 mm (7½″ x 5″ x 2 ¹⁄ ″)

Weight: 640 gram (1.4 lbs)
