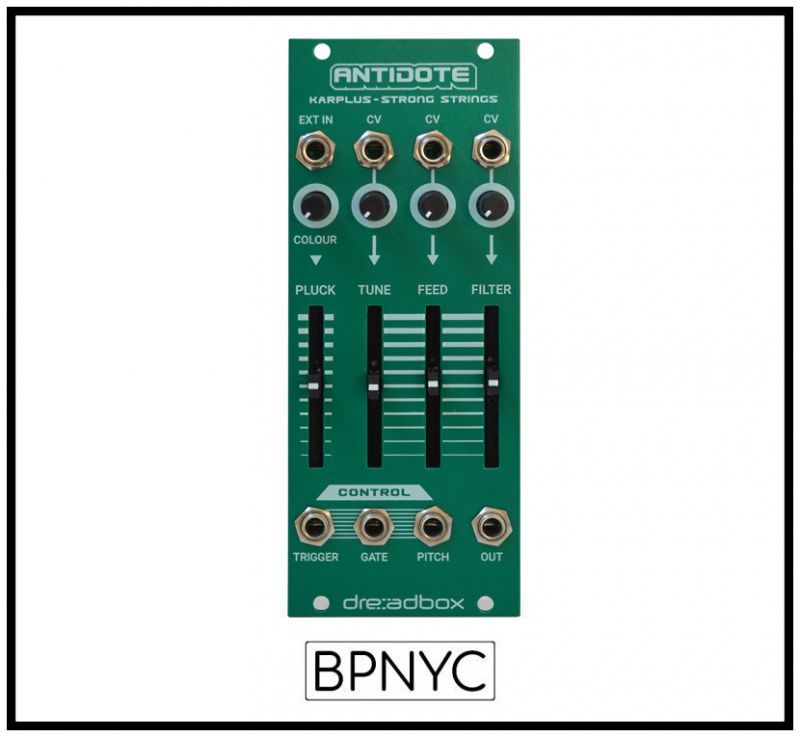

Dreadbox Antidote / Karplus-Strong Strings

- Full Karplus-Strong synthesis voice
- Analog circuit based on a 512stages BBD chip
- On board noise generator with a variable decay (pluck)
- Two analog low pass filters (one at the input and one at the output)
- Output filter can be used as a low pass gate
- Precision tracking over 5 octaves (from C0 up to B4)
- Can process external audio signal so as to be used as:
Resonator
Flanger (requires external LFO)
Chorus (requires external LFO)
- Frequency/delay time range:
C0 @16,35hZ (61ms) up to
B4 @493,9hZ (2,1ms)
- BBD quirks:
- C0 to F#0 will produce a hight pitched noise
- depending on the external input and the LFO source, clicks and peaks might be audible
- Current consumption: 92mA@+12v , 43mA@ -12v
- 35mm depth
- 10HP
