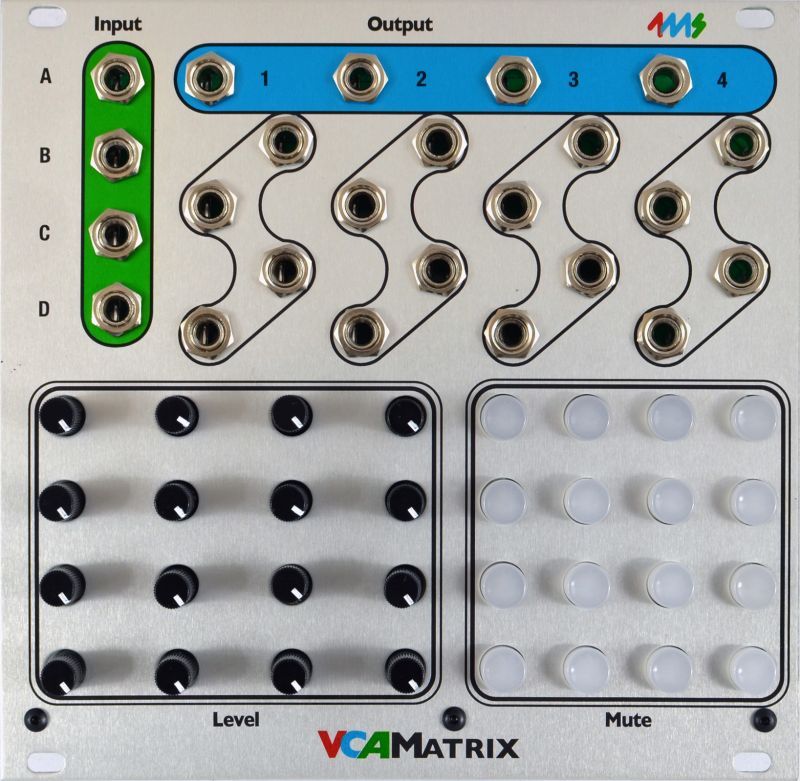

4ms VCA Matrix
Four CV or audio inputs can be routed in any amount/combination to four outputs, using the 16 CV control jacks, Level knobs, and Mute buttons.
Features:
4 CV/audio inputs and 4 outputs (buffered and dc-coupled)
Full range (0Hz - 20kHz) for both Control and Signal inputs, allows for AM effects, etc.
16 VCA's using high quality SSM chips
Attenuation/gain range from -100dB (mute) to 0dB (unity). Up to +20dB boost with trimpot adjustment.

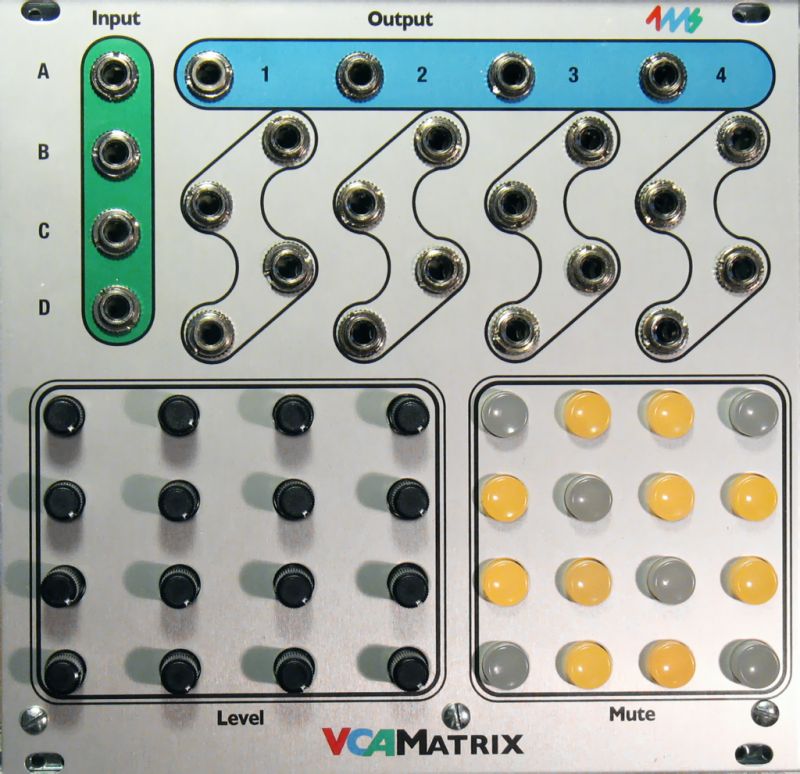

Playable surface with 16 latching Mute LED buttons, used to mute each VCA individually (Mute button disconnects Control jack and Level knob, and fully attenuates the VCA)
LED button brightness indicates amount of attenuation and Control CV signal
16 Control jacks for VCA level control
16 Level knobs attenuate the incoming Control signals. The Level knobs act as manual level controls when nothing is plugged into the Control jack
Exponential VCA response in low control voltage range, pseudo-log response in higher voltage range.
"Soft Limit" effect limits gain to prevent clipping, while still responding to higher Control voltages with more "punch" and wider pulses

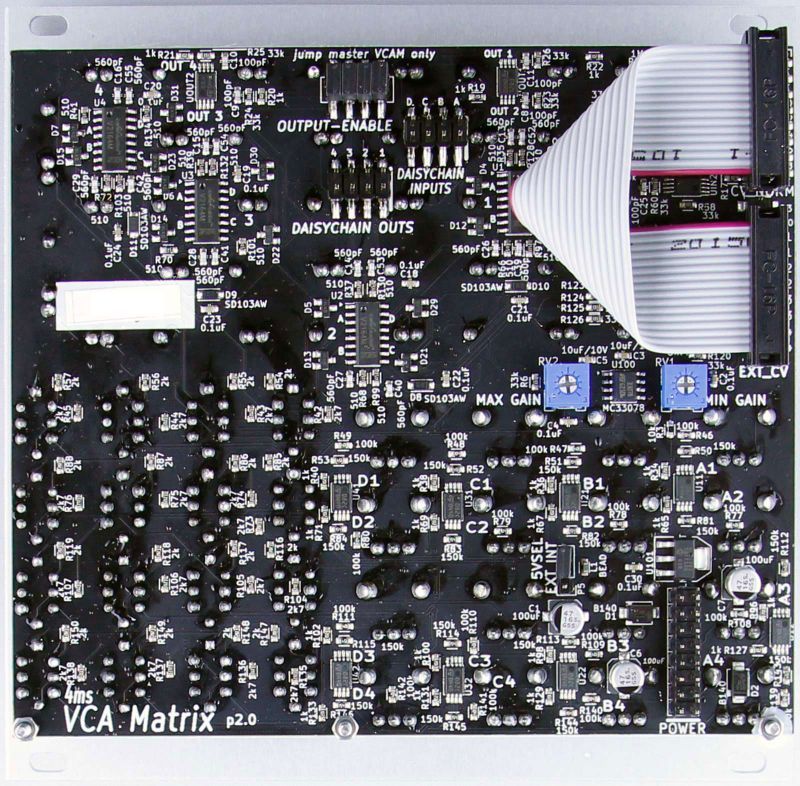

Matrix Expandability: VCA Matrices can be connected to form a larger matrix using headers on the back (4x8, 8x8, 12x4, etc)
Control Expandability: 16-pin header on back side of PCB allows an external device to control all VCAs: e.g. patch recall, patch sequencing, preset patterns such as quadrature panning, etc.
Suitable as a 4x4 mixer, splitter, dynamic signal router, limited waveshaper, etc.

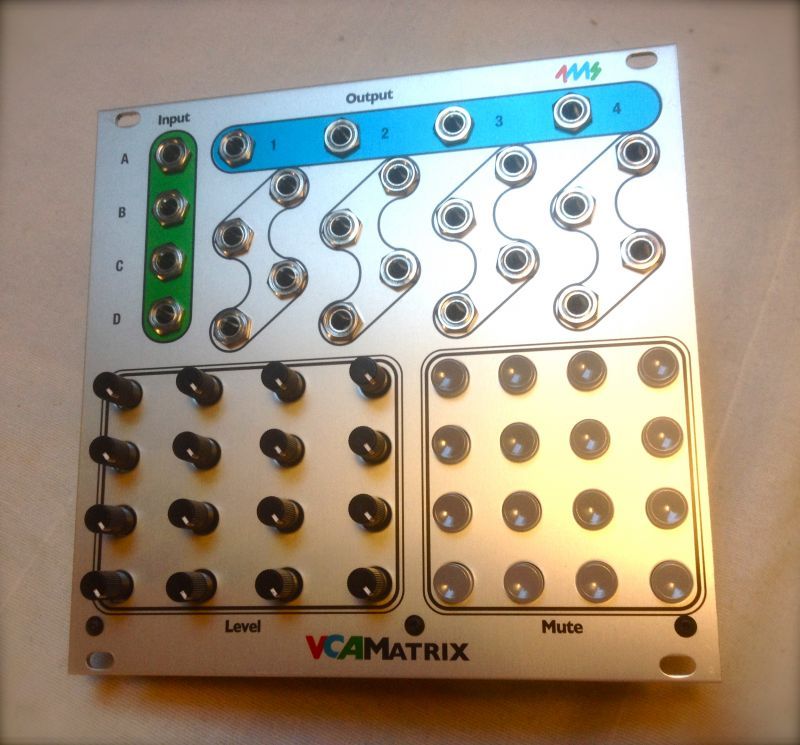

Module size:

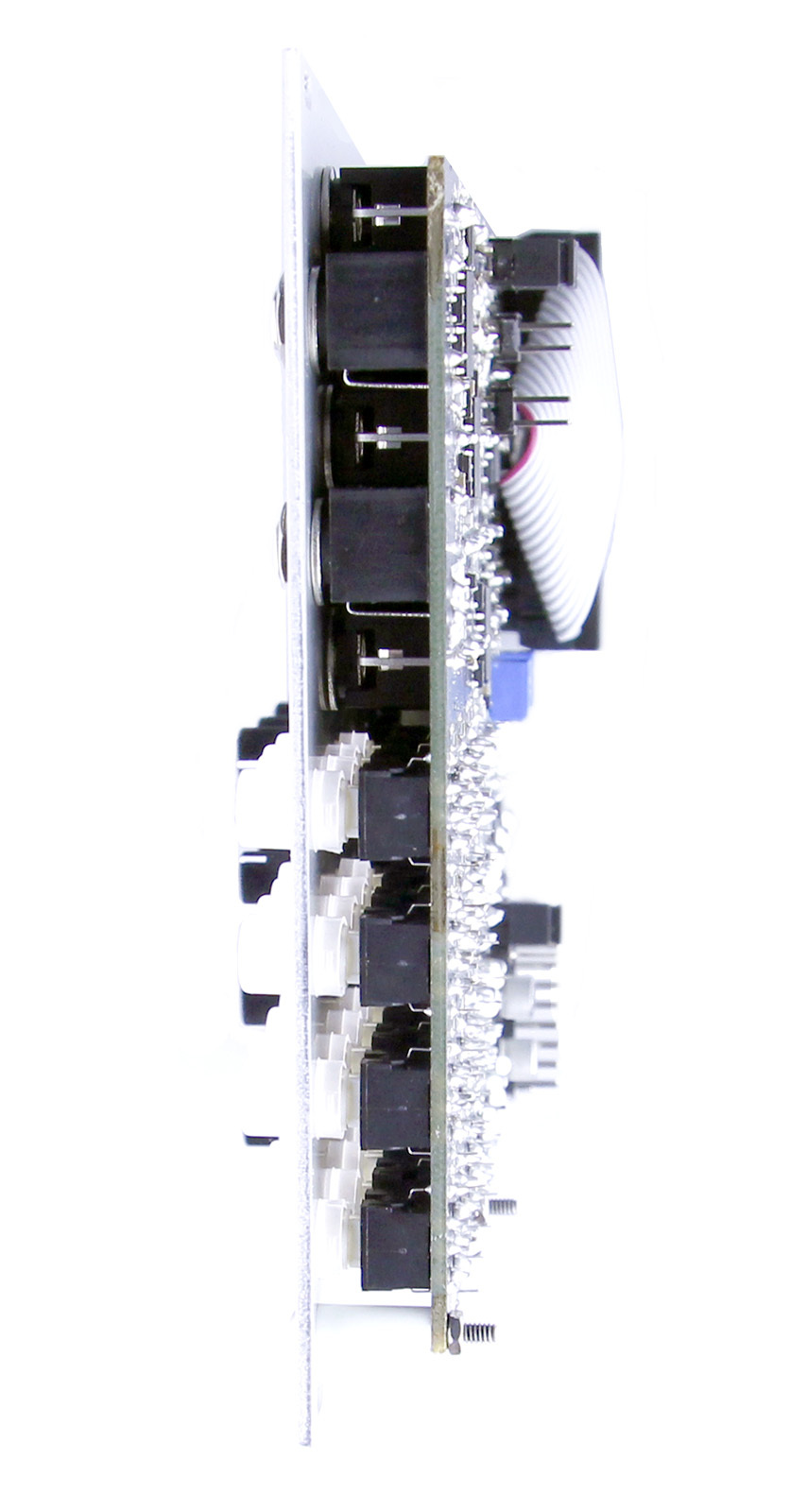

The VCA Matrix is 28HP, and approximately 1.6" deep (40mm)
Power consumption:
A jumper selects using +5V from the power supply, or generating +5V on-board from the +12V rail.
-12V rail: 110mA max
+12V rail:
80 max with jumper selecting external 5V
110mA max with jumper selecting internal 5V.
+5V rail:
40mA max with jumper selecting external 5V
not used (0mA) with jumper selecting internal 5V.
Features:
4 CV/audio inputs and 4 outputs (buffered and dc-coupled)
Full range (0Hz - 20kHz) for both Control and Signal inputs, allows for AM effects, etc.
16 VCA's using high quality SSM chips
Attenuation/gain range from -100dB (mute) to 0dB (unity). Up to +20dB boost with trimpot adjustment.
Playable surface with 16 latching Mute LED buttons, used to mute each VCA individually (Mute button disconnects Control jack and Level knob, and fully attenuates the VCA)
LED button brightness indicates amount of attenuation and Control CV signal
16 Control jacks for VCA level control
16 Level knobs attenuate the incoming Control signals. The Level knobs act as manual level controls when nothing is plugged into the Control jack
Exponential VCA response in low control voltage range, pseudo-log response in higher voltage range.
"Soft Limit" effect limits gain to prevent clipping, while still responding to higher Control voltages with more "punch" and wider pulses
Matrix Expandability: VCA Matrices can be connected to form a larger matrix using headers on the back (4x8, 8x8, 12x4, etc)
Control Expandability: 16-pin header on back side of PCB allows an external device to control all VCAs: e.g. patch recall, patch sequencing, preset patterns such as quadrature panning, etc.
Suitable as a 4x4 mixer, splitter, dynamic signal router, limited waveshaper, etc.
Module size:
The VCA Matrix is 28HP, and approximately 1.6" deep (40mm)
Power consumption:
A jumper selects using +5V from the power supply, or generating +5V on-board from the +12V rail.
-12V rail: 110mA max
+12V rail:
80 max with jumper selecting external 5V
110mA max with jumper selecting internal 5V.
+5V rail:
40mA max with jumper selecting external 5V
not used (0mA) with jumper selecting internal 5V.
