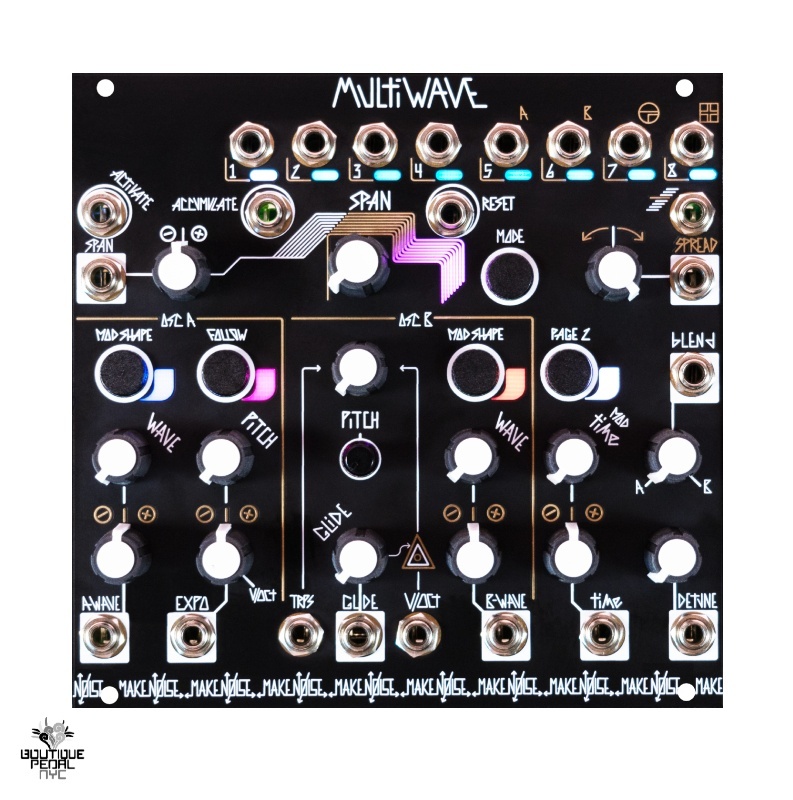

MultiWAVE is an 8-channel dual wavetable oscillator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate audio waveforms at eight independent channel outputs.

Each of the eight MultiWAVE channels contains two independent wavetable oscillators, Osc A and Osc B, each loading its own wavetable with variable frequency, modulation, and wavetable position.

MultiWAVE includes an output header for creating pre-patched connections to the audio signal inputs of two QXG modules. When grouped up with PoliMATHS it creates the 8-channel core of the New Universal Synthesizer System.

Features:

• 8-channel dual wavetable oscillator with a single set of controls
  • Sequence A and B oscillators (per channel) independently or together via 4 Follow modes
  • Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.
  • Variable timbre per channel via Spread and Modulation Dissemination
  • Independent v/o inputs per oscillator and global transpose v/o input
  • Built-in polyphonic quantizer
  • Modulatable polyphonic detune, and glide.
  • Works as a Harmonic Oscillator with detune turned fully clock wise
• Modulate wavetables using built-in MultiMod LFO
  • Independent modulation depth and shape per oscillator.
  • Modulation Time and depth variable per voice via spread and modulation dissemination
• Ships with custom Make Noise wavetables developed from Make Noise modules
  • Smooth interpolation between waveforms
  • Compatible with Waveedit format wavetables
  • Each wavetable contains 64 waves
  • Capable of storing 8 banks of 8 wavetables.
• Activate channels in multiple voltage-controllable Span modes
  • In arbitrary order using Channel Index
  • Sequentially with variable channel count step in Round
  • Via variable per channel clock divisions using Parallel
• Oscillator Core of the New Universal Synthesizer System
• Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules
• Chain to pair of QXG for immediate 8-channel mixing, with amplitude control via PoliMATHS for 8-channel modular hybrid Polysynth.

Specifications :

• Width: 26hp
• Max Depth
  (incl. power cable): 43mm
• Power:
  250mA @+12V
  5mA @-12V

MANUALS:

MultiWAVE Manual (PDF)
