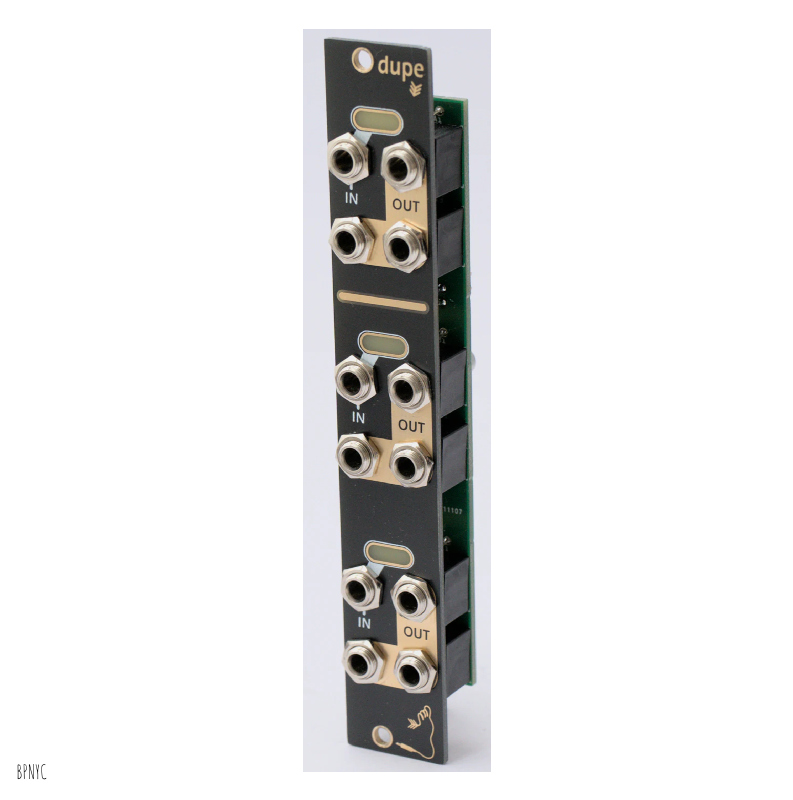

Dupe is a triple 1-to-3 buffered multiple in 4HP.

Inputs from upper channels cascade downward, allowing up to 9 copies of one input!

Possible combinations:

3x one-to-three mults.

1x one-to-three and 1x one-to-six mult.

1x one-to-nine mult.

Specs:

Width: 4HP

Depth: 20mm (including power pins)

Max Current Draw:

+12V: 50mA

-12V: 47mA

+5V: 0mA
