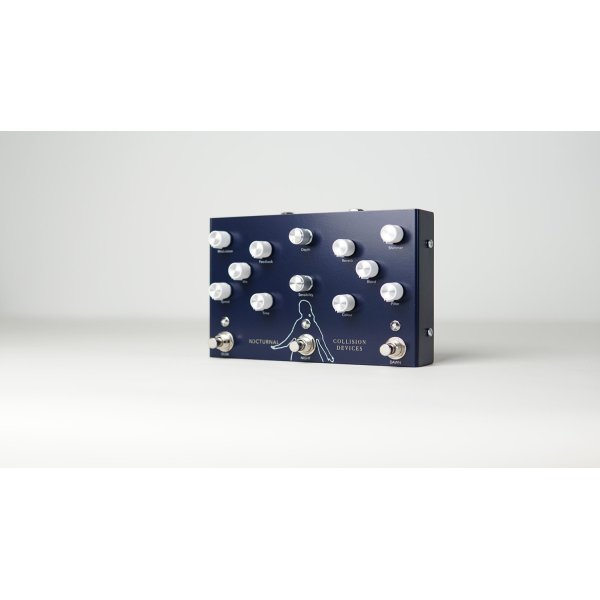

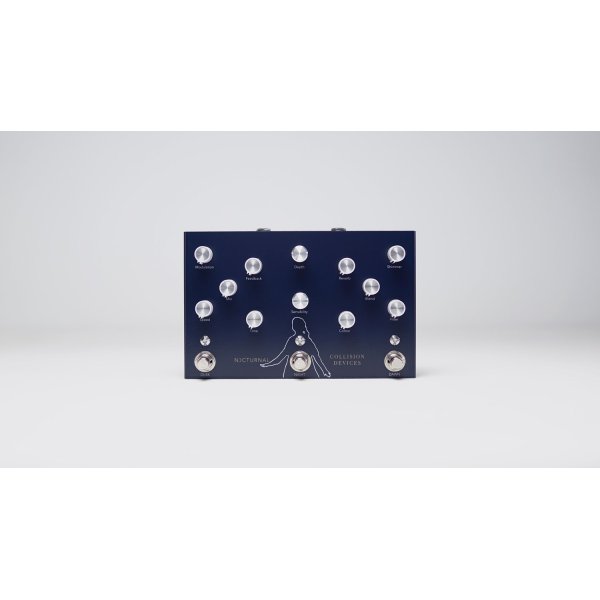

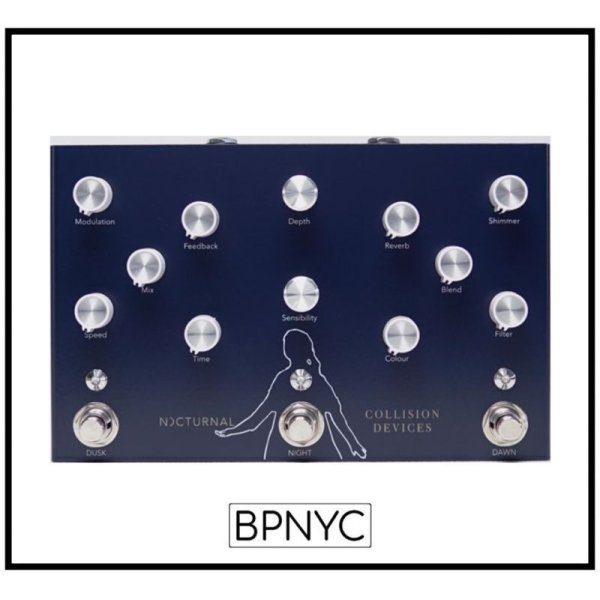

NOCTURNAL
A custom order for our friend Noli turned into your future dream textures and ambiant box.

Pass from the Dusk, through the Night to the Dawn with the Nocturnal.

The Nocturnal has a lifetime warranty. Of course.


3 EFFECTS, ONE PEDAL



DUSK
Modulated Delay

Warmed and inspirational delay based on a tape delay circuit.



Settings :

Mix : Controls the mix between Full Dry or 50% Dry / 50% Wet

Time : Time between each repetition. From a few ms to 1 second. Signal quality turns to Lo-Fi when it’s pushed to long repeats.

Feedback : Number of repetitions. Able to self oscillate very easily when the knob is around 7.5.

Modulation : Amount of modulation in the delay repetitions. Create a sort of old tape effect

Speed : Modulation’s frequency from 0.1 to 20 Hz.

NIGHT
Dynamic Tremolo

Turn a huge amount of shimmer and reverb into it to make it oscillate faster.



Settings :

Sens : Sensibility, turn it clockwise to make the tremolo more sensitive to your attack

Depth : Controls the tremolo’s volume

DAWN
Shimmer

Create bright soundscapes and loose the notion of time until the sunrise.



Settings :

Blend : Controls the amount of Dry/Wet signal. You can have a full Wet reverb.

Reverb : Reverberation time. Max 15 sec.

Shimmer : Makes the reverb shimmer

Filter : Digital filter. Low pass. Lets you make the shimmer darker or more shiny

Colour : Bandpass active and analog filter around 3.3 kHz. Controls the Q of the filter.




Specs

Maximum current draw

400 mA

Imput Impedance

1 MOhm

Size

119 x 116 x 56mm



The use of an isolated power supply is recommended for powering all Collision devices Pedals.

Power supply not included.

The pedal is buffered bypass

Voltage +9V DC (négative center)

Output Impedance 10 KOhm

Weight 250g
