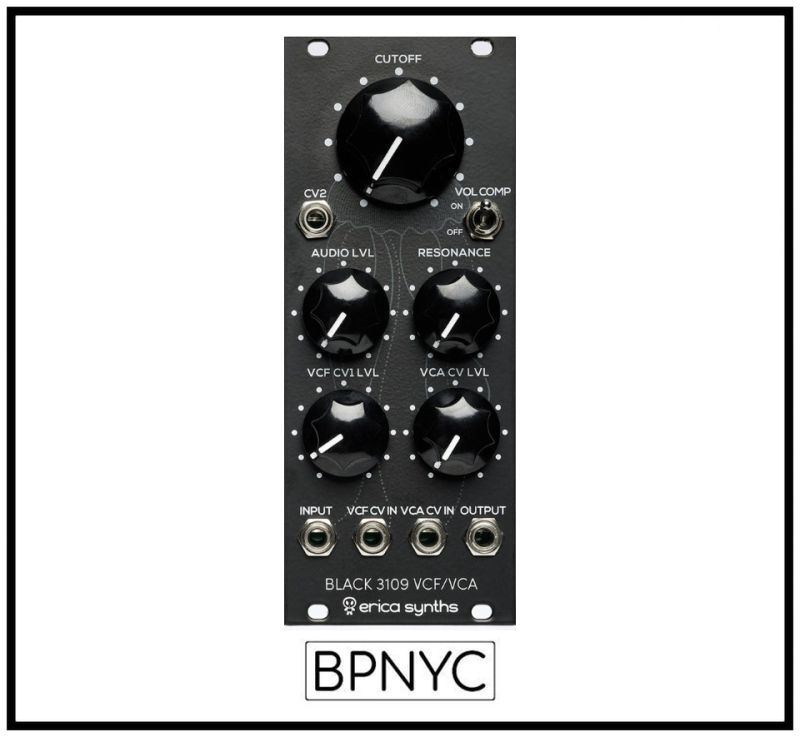

The Erica Synths Black 3109 VCF/VCA is a lowpass filter and voltage-controlled amplifier combo built around the AS3109 VCF integrated circuit, a contemporary version of the IR3109 chip, found on vintage Roland synths such as the Jupiter series, Juno series and the SH-101.
Features
- 24dB/oct lowpass VCF
- Volume drop compensation
- Built-in VCA
- Cutoff level attenuverter
- 1V/oct tracking
The 3109 VCF/VCA is our attempt to recreate the iconic sound of these synths, but we also aim to improve upon it. Filters based on IR3109 had several drawbacks, including a volume drop when the resonance is increased so we added a volume drop compensation as well as a built-in VCA for more versatility in compact setups. Additionally, 1V/oct tuning is implemented so you can use this module for perfect VCF keyboard tracking and also as a VCO.
| Audio level | 10Vptp |
| Cutoff CV level (full span) | -5V - +5V |
| VCA CV level | 0 - +10V |
| Max power consumption | 25mA@+12V, 25mA@-12V |
| Module width | 10HP |
| Module depth | 35mm |
Manuals book
- User manual — April 29, 2022
