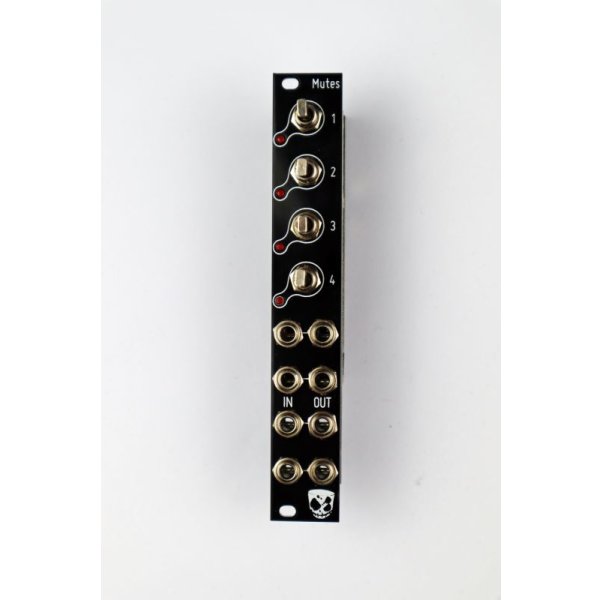

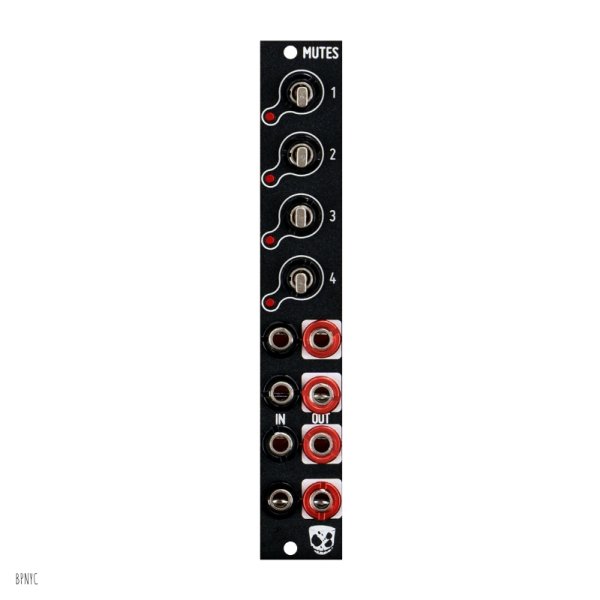

Mutes goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.
Based on VCA for more precision in both modulation and audio as well as click-free muting.
Three-position switch: MOMENTARY signal pass-through (it springs back to the center when released); OFF (or muted) in the center; and ON to the right.

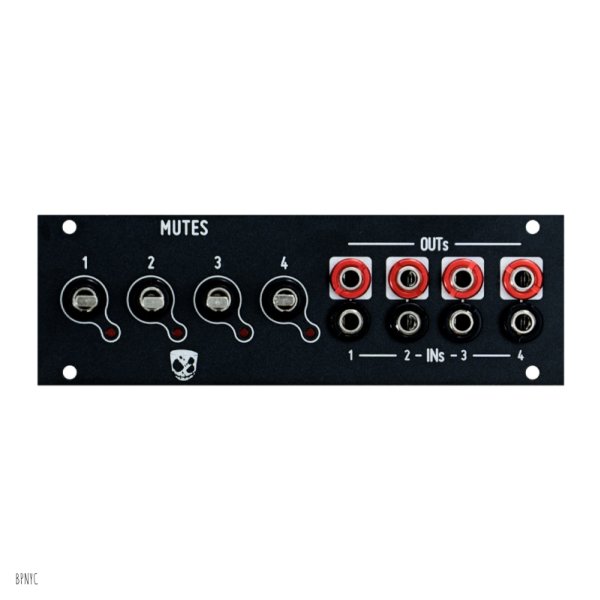

The module can be easily converted into a 1U version (panel included).
FEATURES
LEDs to visualise signals
3 way momentary – off – on switching
Buffered and cascading normalising of inputs
VCA based muting
Interchangeable panel to 1U
SPECS
Current needs: +12V:40mA, -12V:15mA
Width: 4 HP

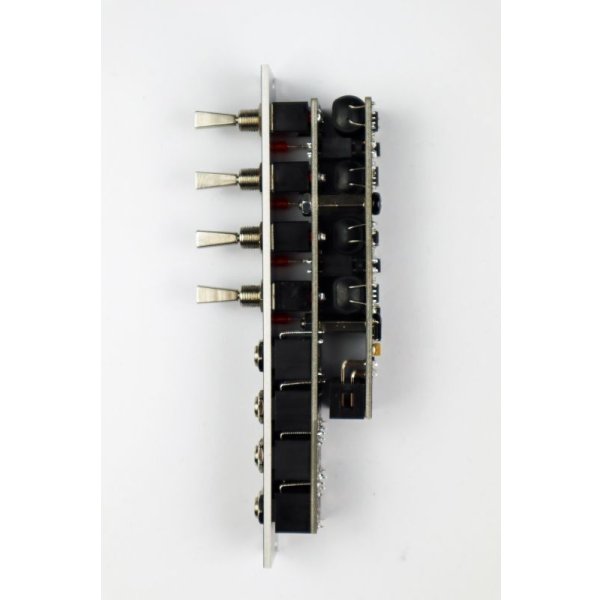

Depth assembled version: 20 mm
Depth DIY version: 40 mm
Designed, kits prepared and completed modules assembled in Barcelona
