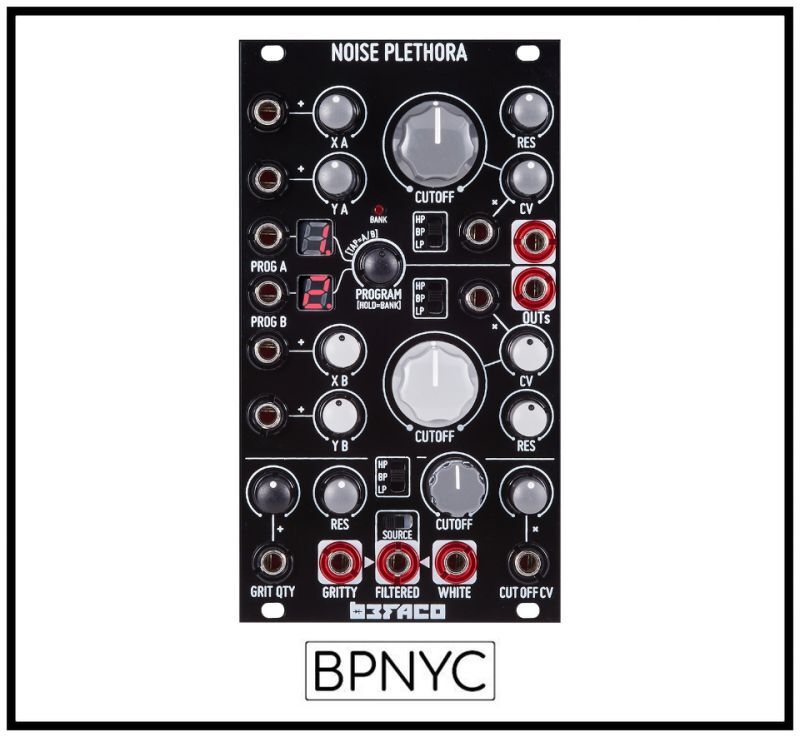

Noise Plethora is a multitimbral noise monster in 14HP.
The module consists of three digital sound generators, followed by three analog multimode Filters. This combination makes it easy to sculpt different textures and noises and play with them intuitively and musically.
The first two channels let you choose from dozens of different algorithms and can be controlled dynamically by two CV controls.
Textures, rumbles, low-fi blips, spikes, oscillator clusters, harsh noises, and much more can be chosen and changed on the fly.
The third channel has three independent outs: Gritty noise to create crispy and crackling soundscapes, White noise, and a filtered version with either of those two.

FEATURES

• Two digital noise channels based on different algorithm banks.
• Two CV controlled parameters per algorithm.
• Analog Multimode Filter per channel (OTA based)
• White and Granular Noise dedicated outputs.

SPECS

• Current needs: +12V: 110mA, -12V: 67mA
• Width: 14 HP
• Depth: 25 mm (including power connector)
• Aluminium, heat-treated front panel.
• Designed and assembled in Barcelona.

RESOURCES

• User Manual >>
• Assembly Manual >>
• BOM File >>
• *iBom >>
• Firmware >>
• Source code >>
