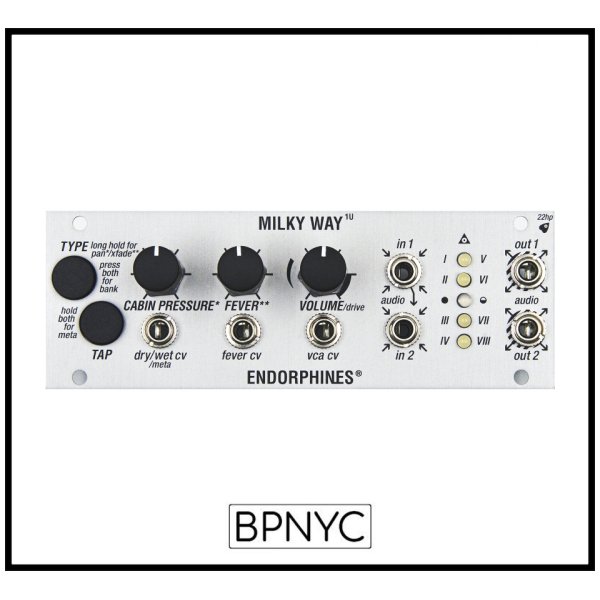

16 ALGORITHM STEREO FX PROCESSOR

• Simple and effective stereo FX processor with advanced effects

• 16 types of effects are available: HALL REVERB, SHIMMER REVERB, ROOM REVERB, PLATE REVERB, SPRING REVERB, PING-PONG DELAY, TAPE ECHO DELAY, CHORUS, GATED REVERB, SPRING REVERB 2, REVERSED REVERB, FLANGER, RING MOD, OVERDRIVE, COMPRESSOR, FREEZER.

• Meta cv effects scanning

• Volume control knob with with VCA.

• Input crossfader + panner

• stereo out pins for daisy chaining with other 1U modules and compatible with Intellijel Mixup / Audio Jacks V2 Boards

• also available in 3U / 6HP version

Power consumption:

• 120 mA +12V

• 15 mA -12V

• 0 mA 5V





  Dimensions:

• 22 HP

• 42 mm deep

MANUAL: HERE

FIRMWARE UPDATE: LATEST RELEASE V4.1 ‘TOTAL NIGHTMARE’ 25-MAY-2021
