Expert Sleepers

Expert Sleepers IVO -Filter module

販売価格: 31,900円

重さ: 1lb

数量:

返品特約に関する重要事項

商品詳細

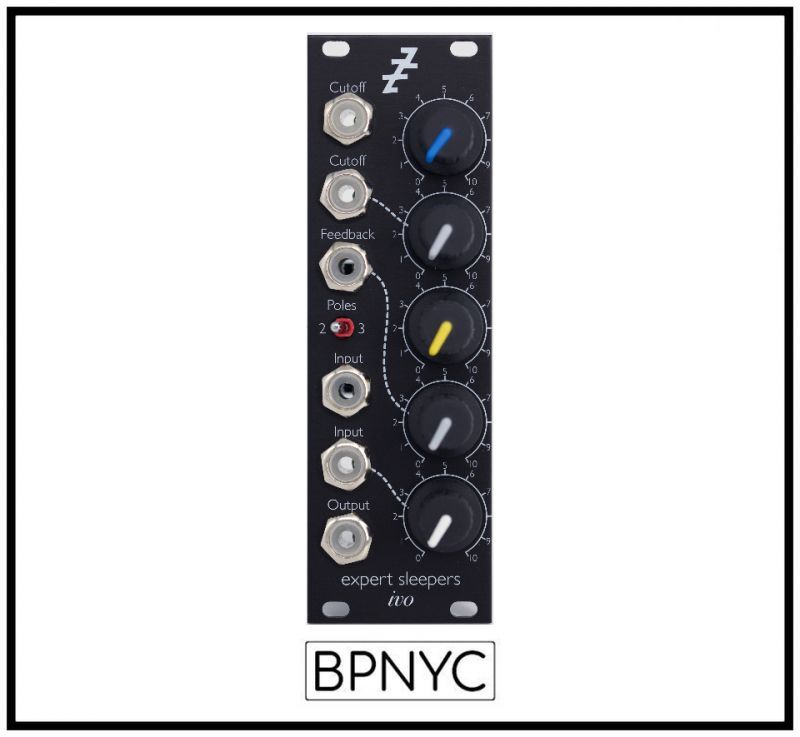

'Ivo' is a resonant low-pass VCF (Voltage Controlled Filter), switchable between 2-pole (12dB/octave) and 3-pole (18dB/octave) responses, with voltage control over feedback (resonance) as well as cutoff frequency. It will self-oscillate in 2-pole mode.

The module has two audio inputs, one with an attenuator, so it will also mix two signals at the filter input.

The module is 100% analogue, using discrete transistor OTAs.

Specifications

Ivo's specifications are as follows:

Panel width: 8HP
Module depth: 37mm
Current draw: 22mA on the +12V rail, 18mA on the -12V rail
Inputs:

Cutoff (approximately 1V/octave)
Cutoff (with attenuator)
Feedback (with attenuator)
Audio input
Audio input (with attenuator)

Outputs:

Audio output

For more detail, please see the user manual.
