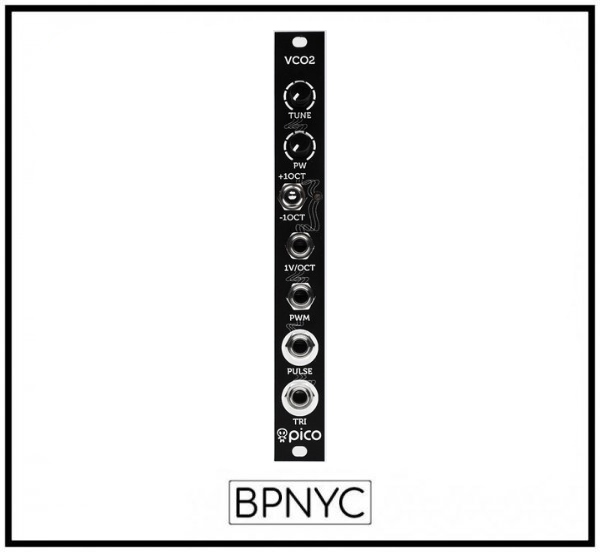

Erica Synths Pico VCO2 – powerful, full analogue VCO with great tracking over 8 octaves just in 3HP! Combine two of those, add some PWM and have a sound of real analogue beast!
Features
- Manual TUNE and PWM controls
- +-1 octave switch
- 1V/oct input with good tracking across 8 octaves
- PWM CV input
- Pulse and triangle waveform outputs
- Input protection against overvoltage
- Protection against reverse PSU connection
Technical specification:
| Output signal amplitude | -5V - +5 |
| PWM CV input (full span) | -5V - +5V |
| Power consumption | +21mA, -19mA |
| Module width | 3HP |
| Module depth | 35mm |
