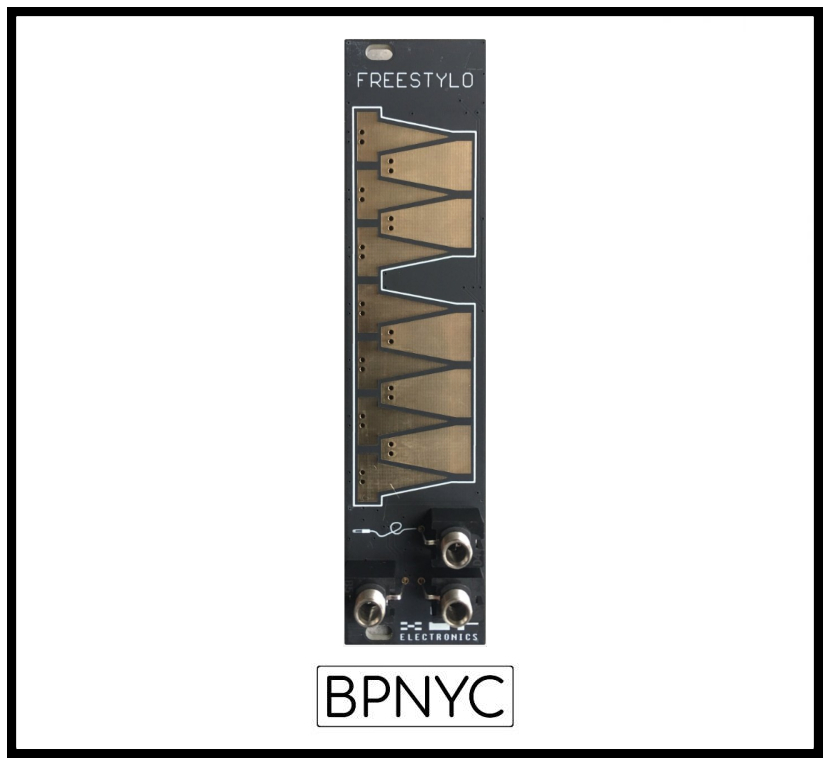

The Freestylo is a little eurorack keyboard that is using a patch cable as ‘stylus’.

It contains 3 Jack connections, one to connect the stylus, one CV and one Gate output.

If you connect the stylus with one of the keyboard pads, it will set the gate and change the CV to the keyboard note.
The CV range is one octave between 1 and 2 volt. Other external 5 volt triggers can be also used instead of the stylus.

The module width is 6HP and uses 5mA on the +12V Rail. The Frontpanel is the module itself at the same time, so it is more than skiff-friendly. The Freestylo comes with a stylus (patch cable) and a bus power cable.
