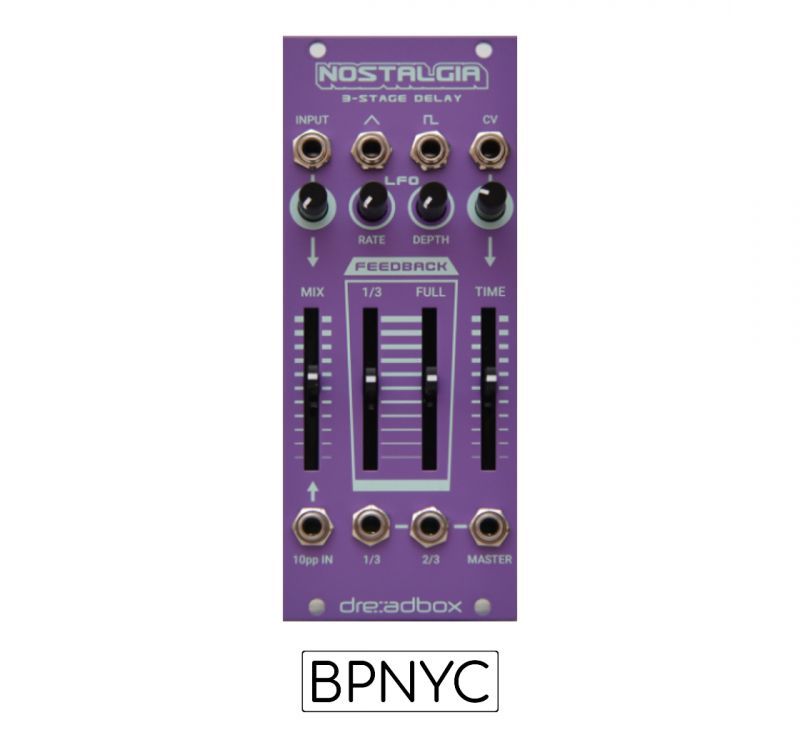

Nostalgia / 3 ステージ ディレイ

Features
3 Stage Hybrid Delay based on the Erebus’s Circuit
Consisted of 3 echo circuits in series
Outputs for stage 1 and 2 (output level is 1/2 lower than the incoming signal)
2 different Feedback controls for different stages
LFO with range
Voltage Controlled Delay Time with range from 30ms up to 1sec
Separate input for modular level signals
And separate input for signals up to guitar levels
Power Consumption: 117mA @ +12V , 25mA @ -12V
35mm depth
10HP
