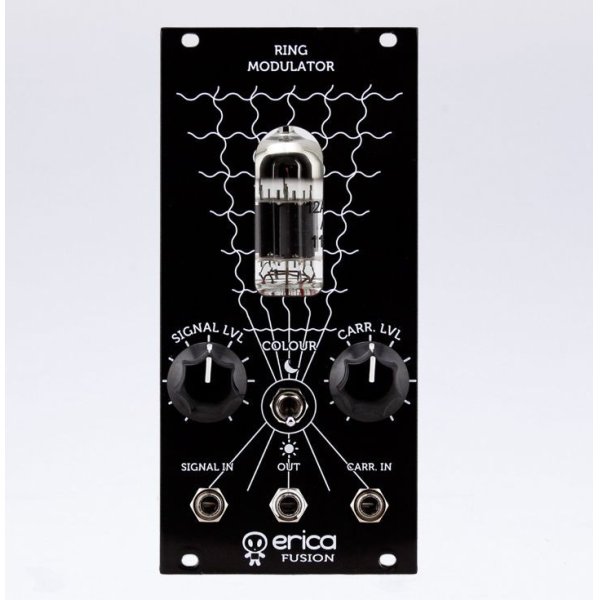

Erica Fusion Ring Modulator – a classic design ring modulator with germanium diode ring + vacuum tube to boost and shape audio and carrier signals.

Germanium diodes enrich the sound by adding extra harmonic content meanwhile vacuum tube adds evilish overdrive to audio and carrier signals. As result you get one of most versatile ringmodulators around!

Features:

Germanium diode ring
Audio transformers
Adjustable tube overdrive on both audio and carrier inputs
Colour switch to select between brighter and darker sound
Configurable power supply – standart eurorack +-12V conection OR eurorack +-12V plus Erica Synths Tube heater PSU

Technical specifications:

Input signal level

up to 20V ptp

Output signal level

10V ptp

Power supply

bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU

Power consumption

Tube heater PSU configuration: 10mA@+12V, 10mA@-12V, 300mA@6VAC

Eurorack PSU configuration: 160mA@+12V, 10mA@-12V

Module width

12HP

Module depth

35mm



Please reffer to user manual to find possible powert supply configuration!
