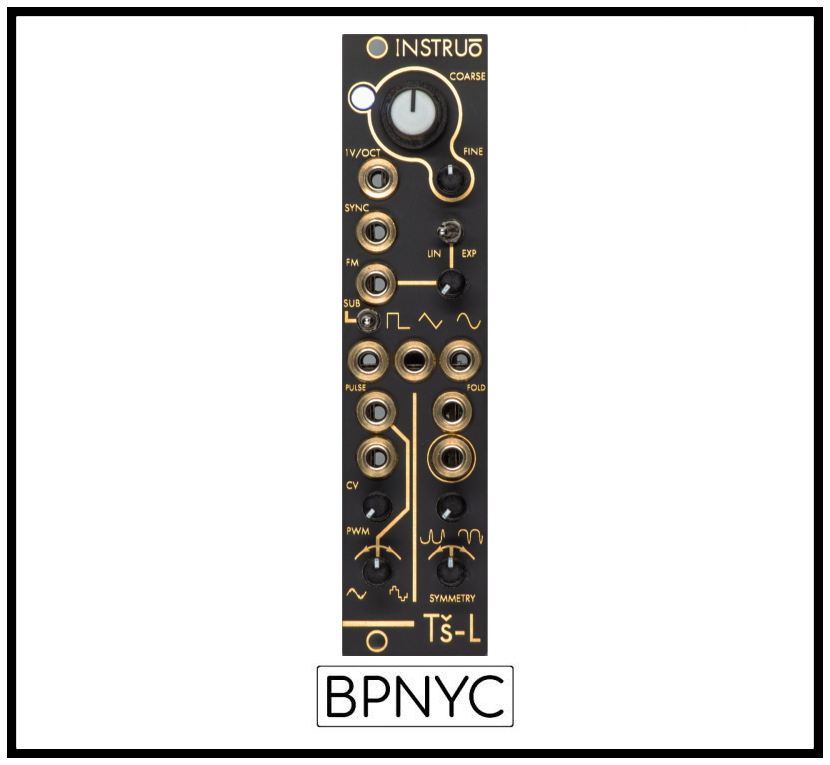

Instruō Tš-L オシレーター

Tš-L

oscillator

The Instruō Tš-L is a fully analogue voltage controlled oscillator with a plethora of features in a very small footprint.

Its triangle core circuitry allows for extremely consistent waveforms over a wide frequency range. The triangle foundation is used to generate its sine waveform which holds consistent shape and amplitude across the Tš-L’s wide range. The outputs consist of simultaneous Square/Sub, Triangle, and Sine waveforms, with additional voltage controllable wavefolder and complex PWM waveshaper.

Tš-L includes every feature needed to powerfully perform as a rich, ultra compact audio source, as well as functioning equally as well as a versatile modulation source.

Tš-L | tiː-əz-ɛl | proverb (siri) “this sauce later rocks”

Description
Size
6HP
Depth: 27mm

Power
+12V: 60mA
-12V: 40mA

Specifications
Triangle core analogue oscillator
1V/octave, Coarse and Fine pitch controls
Oscillator soft sync
FM input with attenuator with selectable linear or exponential ranges
Sine
Triangle
Subsquare (1 or 2 octaves below fundamental)
PWM – variable split triangle/double pulse square, CV controllable
Wavefolder with symmetry control and CV over fold depth

Description
The Instruō Tš-L is a fully analogue voltage controlled oscillator with a plethora of features in a very small footprint.

Its triangle core circuitry allows for extremely consistent waveforms over a wide frequency range. The triangle foundation is used to generate its sine waveform which holds consistent shape and amplitude across the Tš-L’s wide range. The outputs consist of simultaneous Square/Sub, Triangle, and Sine waveforms, with additional voltage controllable wavefolder and complex PWM waveshaper.

Tš-L includes every feature needed to powerfully perform as a rich, ultra compact audio source, as well as functioning equally as well as a versatile modulation source.
Instruō Tš-L オシレーター

販売価格: 29,900円

重さ: 1lb

数量:
お問い合わせ

*** お問い合わせ&予約受付中 ***
当店で扱っている各商品は大量生産ではありません。 メーカーにも在庫に限りがあります...
確実に欲しい商品に関しては早めに予約/在庫確認する事をおすすめします...
