BIGSBY® B3 Kit with TOWNER V.BLOCK System Stainless Steel & Aluminum

BIGSBY® B3 Kit と TOWNER V.BLOCK System Stainless Steel & Aluminum のセット!

”タウナー V. ブロック”システム

”タウナー V. ブロック”はBIGSBY® B3ビブラートテールピースがLES PAULタイプのギター本体にフィットするように設計されています。

タウナー V. ブロックはBIGSBY®B3、およびBIGSBY®B7オンリー用に設計されています。

タウナー V. ブロックはBIGSBY®のスプリングカップがブリッジポストやストップテールピーススタッドに当たらないように1/2 インチ(1.27cm)離れるように設計されています。

また、BIGSBY®が短いギターのボディにフィットする為に必要な距離を作ります。



タウナーダウンテンションバー

“オリジナルダウンテンションバー”

タウナーダウンテンションバーはサスティンを制御してブレークアングルをコントロールします。

タウナー ダウンテンションバーはBIGSBY® B3、BIGSBY® B6、BIGSBY® B11、BIGSBY® B30、BIGSBY® B60と使用できるように設計されています。

タウナーダウンテンションバーをストップテールピースの代わりにストップテールピーススタッドに取り付けた後、スタッドを上下させることができます。弦にどれくらい下向きの張力をコントロールするかによって、ギターストリングのサステインを管理します。

各ギタリストは弦のゲージから、アクション、ブリッジの種類と高さ、ナットの種類まで好みは様々です。その為ギターの設定は必ず微妙に異なるため、このシンプルな機能がとても理想的なものであり、各プレイヤーのカスタムセットアップの際に活躍します。



タウナーヒンジプレートアダプター

タウナーが独自のアイデアで生まれたとても小さいのにとても重要な役目を果たす”オリジナルヒンジプレートアダプター”!

BIGSBY®B3、およびBIGSBY®B7ヒンジプレートをボタンスクリューでギターに固定し、ストラップロックボタン用の平らな面を作ります。 #6 1 "ネジが付属しています。

通常のビグスビーでは都合の悪いストラップロックやストラップボタンへのアクセスを容易にすることを可能にし、大事な貴方のギターの本体に4本の余分なネジ穴を開ける必要がありません。

SCHALLER ストラップロック、DUNLOPストラップロック、GROVERストラップロックなどのストラップロックボタンは、BIGSBY®B3およびBIGSBY®B7ヒンジプレートのスロットには適合しません。

しかしこの小さなHinge Plate Adapterを使用するだけでSCHALLER ストラップ・ロック、DUNLOP ストラップ・ロック、GROVER ストラップ・ロックを問題なく簡単に取り付けることができます。機能性だけではなくルックス的にも向上します。

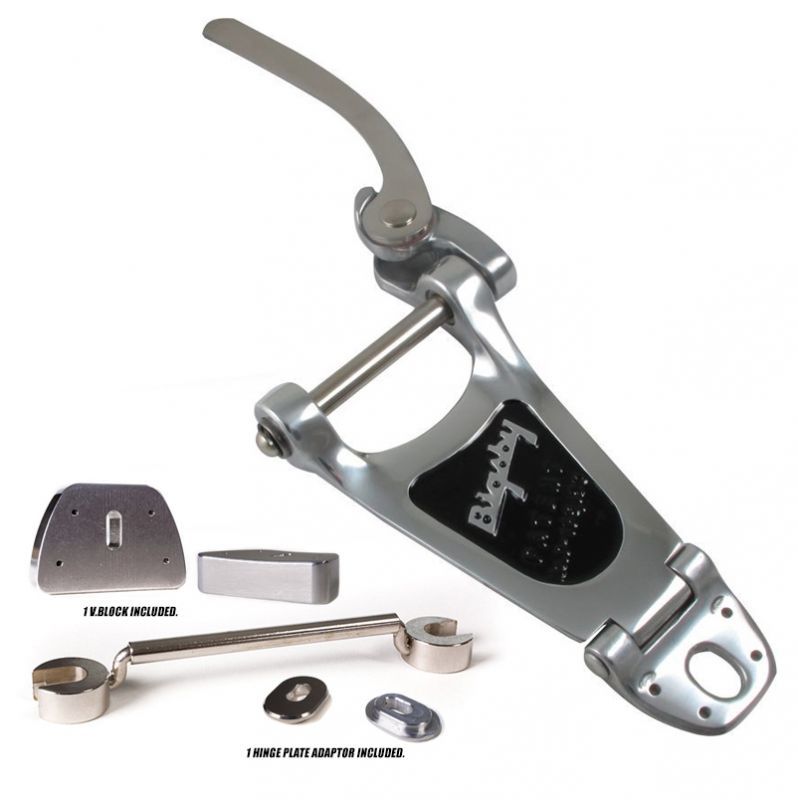

The BIGSBY® B3 with the TOWNER Down Tension Bar manages your sustain controlling your break angle, The Hinge Plate Adaptor retains the hinge plate to the guitar with a #8 2.5″ screw and the V.BLOCK acts as a shim to fit the BIGSBY B3 on the guitar.

BIGSBY® B3

Description

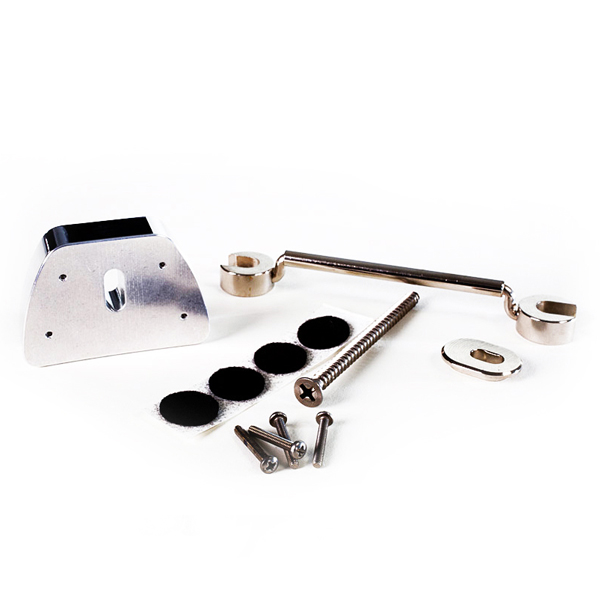

BIGSBY® B3 with the TOWNER V.BLOCK, Down Tension Bar and Hinge Plate Adaptor System

Designed for the BIGSBY® B3 vibrato tailpieces ONLY.

The TOWNER V.BLOCK is designed set the BIGSBY® spring cup back 1/2″ inch from butting up against the stop tailpiece stud.

The TOWNER V.BLOCK System works best with LES PAUL or short type guitar bodies to mount a BIGSBY® B3 vibrato tailpiece.

The TOWNER Down Tension Bar manages your sustain controlling your break angle.

With the ability to raise or lower the TOWNER Down Tension Bar you can control how much downward tension you want on your strings, therefore, managing the guitar string sustain.

The TOWNER Hinge Plate Adaptor is designed to lift your strap lock or strap button out above the slot in BIGSBY® B3 hinge plates for easier access to your strap lock or strap button. Some strap lock buttons and strap buttons do not fit between the slot of the BIGSBY® B3 hinge plates.

The TOWNER Hinge Plate Adaptor slot provides room for exact placement of the BIGSBY®.

The TOWNER Hinge Plate Adaptor acts as a retainer holding the BIGSBY® vibrato tailpiece to the guitar body with a 2″ screw placed through the strap button, relieving you from having to drill the four extra screws into your guitar provided with BIGSBY® B3 vibrato tailpieces.

*NOTE – CHECK WIDTH of STUD NECK POST:

Measure the neck width of your studs, they should be NO wider than 0.265 inches, if they are wider than 0.265 inches you will need to purchase different tailpiece mounting studs. Gibson Memphis reissues and Gibson reissue guitars sometimes have wider neck post, measure to be sure.

See TOWNER store here for replacements with proper neck post width.

(*The TOWNER Down Tension Bar is designed to fit the neck width of stock GIBSON Guitar stud posts.)

Additional information
Weight 16 oz
Dimensions 9.5 x 5 x 2.5 in

他の写真

BIGSBY® B3 Kit with TOWNER V.BLOCK System Stainless Steel & Aluminum

販売価格: 36,763円 [通常販売価格: 37,900円]

重さ: 2lb

数量:
お問い合わせ

*** お問い合わせ&予約受付中 ***
当店で扱っている各商品は大量生産ではありません。 メーカーにも在庫に限りがあります...
確実に欲しい商品に関しては早めに予約/在庫確認する事をおすすめします...
