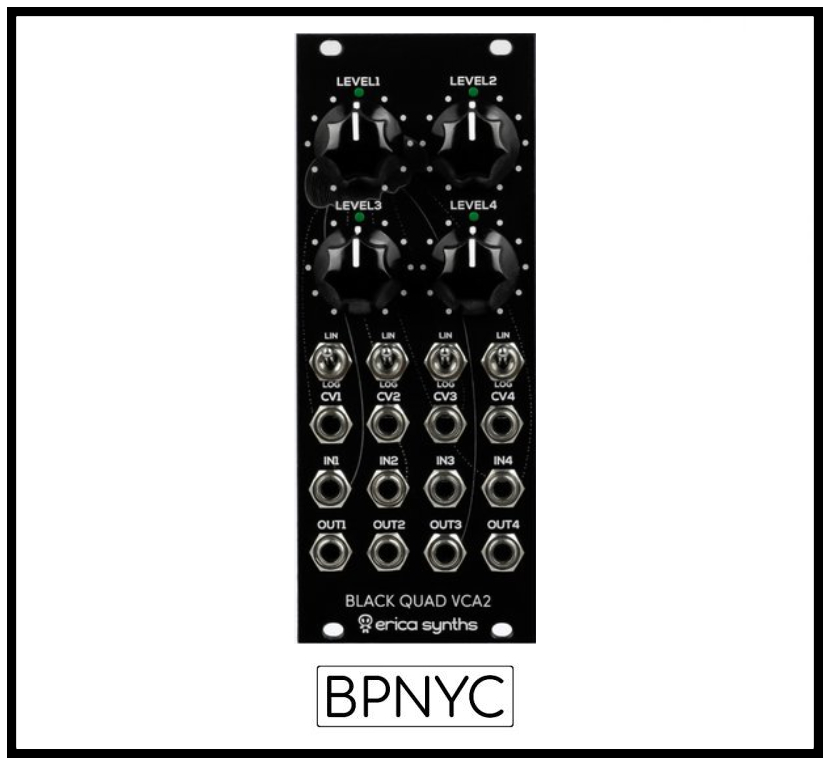

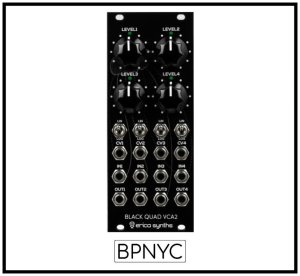

Erica Synths Black Quad VCA

If you wish to shape the sound in advanced ways and you also want to save some rack space then Black Quad VCA is what you need!

This module despite its compact size is designed in line with Black Series Hi-Fi philosophy. Our custom pre-emphasis – de-emphasis circuits preserve all nuances of the original signal, we have introduced unique automatic mixing of outputs and configurable CV addressing. If no CV is applied, Black Quad VCA performs as a signal mixer, as well. Use it together with Erica Black Dual EG/LFO and you have compact, top quality setup!

Features:

4 independent VCAs
Manual signal and CV level adjustment
Pre-emphasis – de-emphasis circuits on all 4 channels
Automatic output mixing
Configurable CV addressing
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

Technical specifications-
CV level: -10V – +10V
Attenuation level: CV = 0V (max attenuation)…… -80dB / CV = +10V (unity gain)………….. 0dB
Response: lin
Power consumption: +38mA, -32mA
Module width: 10HP
Module depth: 25mm

英語マニュアル



* Erica Synths 各商品はお取り寄せのため納期は約1ヶ月になります事をご了承ください...

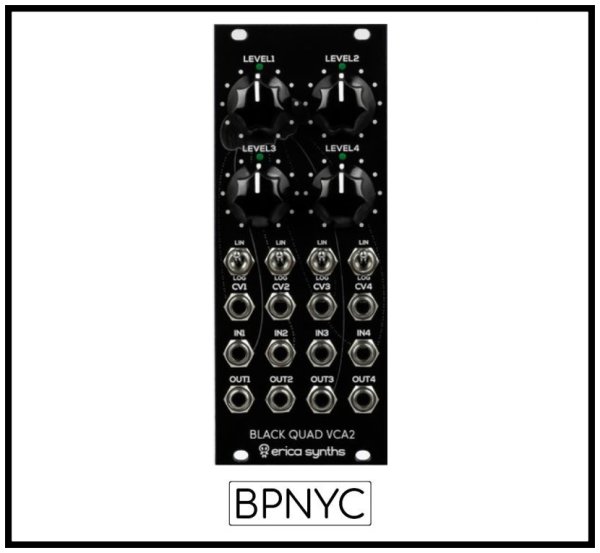

Erica Synths Black Quad VCA

販売価格はお問い合わせください。

お問い合わせ

*** お問い合わせ&予約受付中 ***
当店で扱っている各商品は大量生産ではありません。 メーカーにも在庫に限りがあります...
確実に欲しい商品に関しては早めに予約/在庫確認する事をおすすめします...
