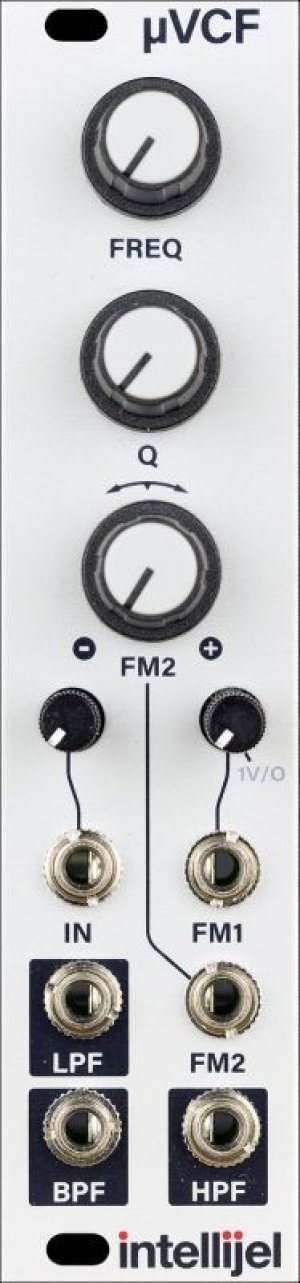

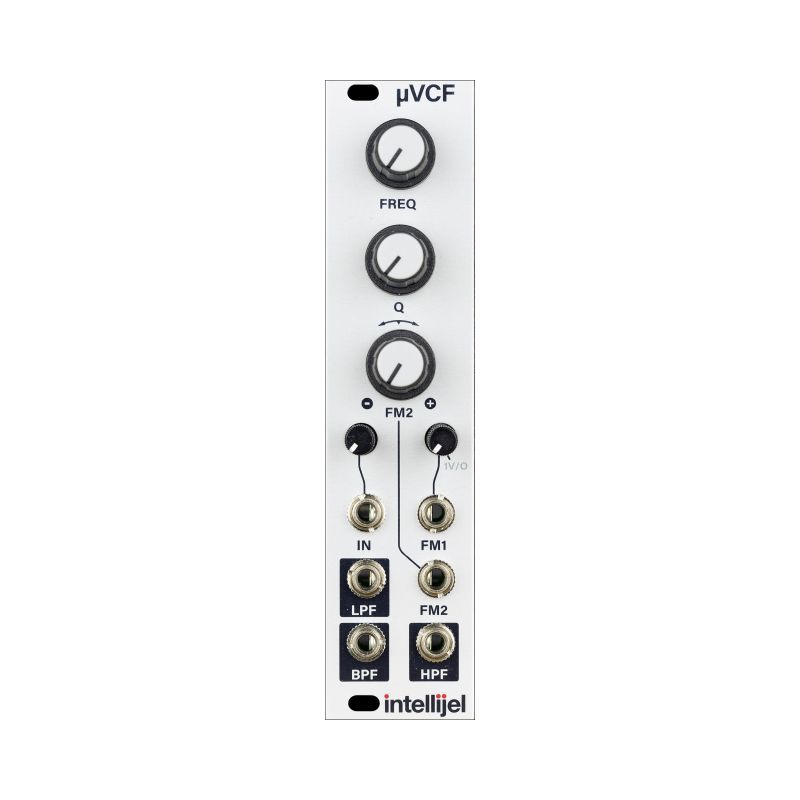

Intellijel Designs µVCF
Introducing the µVCF state variable filter.
This is another great David Dixon filter design. It is a very clean and precise filter that also doubles as an excellent sine VCO.
It responds very well to FM and the small size makes it a nice choice for smaller system.
low pass (LPF) 2-pole, high pass (HPF) 2-pole and bandpass outputs (BPF) 1-pole.
FM1 input acts as 1V/Oct when fully clockwise. Tracks very well over 4+ octaves
FM2 input has a bipolar attenuator
At full Q you the output produces very low distortion sine waves with a range of 2Hz to 20Khz
Width:
6HP
Max Depth:
21mm
Power:
25mA @ +12V
24mA @ -12V
This is another great David Dixon filter design. It is a very clean and precise filter that also doubles as an excellent sine VCO.
It responds very well to FM and the small size makes it a nice choice for smaller system.
low pass (LPF) 2-pole, high pass (HPF) 2-pole and bandpass outputs (BPF) 1-pole.
FM1 input acts as 1V/Oct when fully clockwise. Tracks very well over 4+ octaves
FM2 input has a bipolar attenuator
At full Q you the output produces very low distortion sine waves with a range of 2Hz to 20Khz
Width:
6HP
Max Depth:
21mm
Power:
25mA @ +12V
24mA @ -12V
